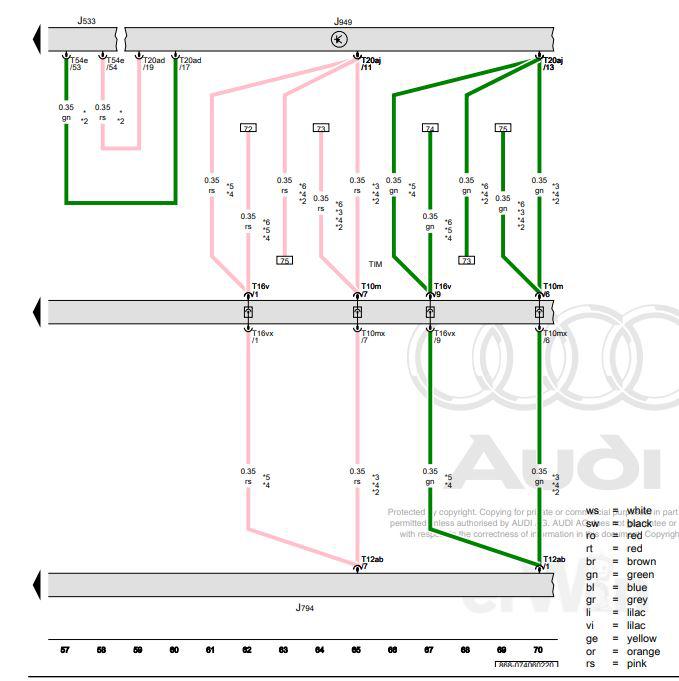

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J533  Data Bus On board Diagnostic Interface

J794  Information Electronics Control Module 1

T10m  10-Pin Connector, Black

T10mx  10-Pin Connector, Black

T12ab  12-Pin Connector, Green

T16v  16-Pin Connector, Brown

T16vx  16-Pin Connector, Brown

T20ad  20-Pin Connector, Black

T20aj  20-Pin Connector, Naturally Cloudy

T54e  54-Pin Connector, Gray

TIM  Coupling Point In Interior, Center

*  Ethernet Connection

*2  From July 2019

*3  Through November 2019

*4  Audio Bus Data Bus Wire

*5  From December 2019

*6  For Vehicles with Bang & Olufsen Sound System
