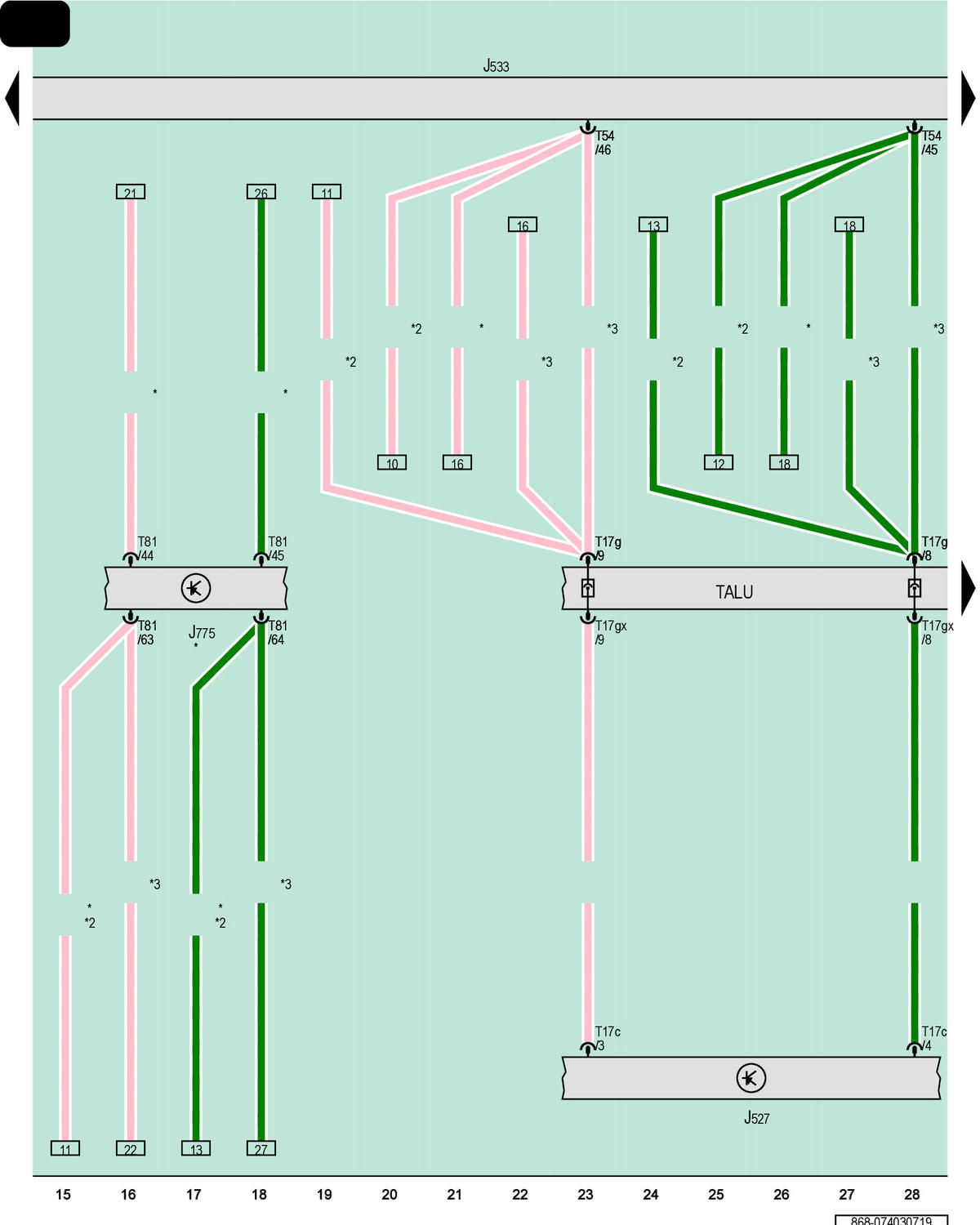

Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Drivetrain Control Module

Courtesy of AUDI OF AMERICA, LLC

J527  Steering Column Electronics Control Module

J533  Data Bus on Board Diagnostic Interface

J775  Drivetrain Control Module

T17c  17-Pin Connector, Yellow

T17g  17-Pin Connector, Blue

T17gx  17-Pin Connector, Blue

T54  54-Pin Connector, Black

T81  81-Pin Connector, Black

TALU  Coupling Point on Left A-Pillar, Bottom

*  For Vehicles with Electronic Damping

*2  For Driver Assistance System

*3  Not for Vehicles with Driver Assistance System
