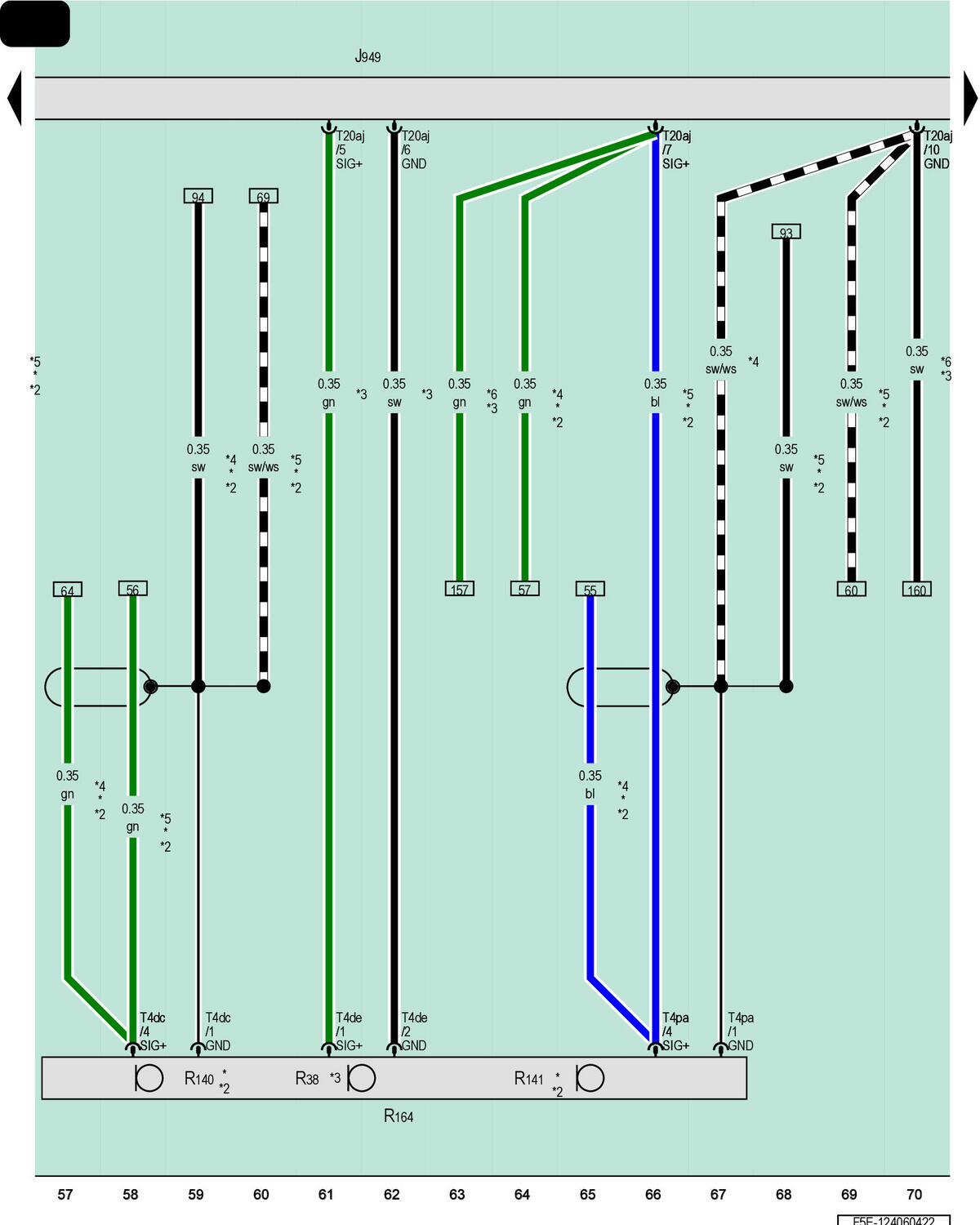

Control Module For Emergency Call Module And Communication Unit, Microphone Unit In Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R38

Telephone Microphone

R140

Left Front Microphone

R141

Right Front Microphone

R164

Microphone Unit in Front Roof Module

T4dc

4-Pin Connector, Gray

T4de

4-Pin Connector, Black

T4pa

4-Pin Connector, Blue

T20aj

20-Pin Connector, Naturally Cloudy

*

Coupe

*2

Sportback

*3

For Convertible

*4

For LHD Vehicles

*5

For RHD Vehicles

*6

For Vehicles with Seat Belt Microphone
