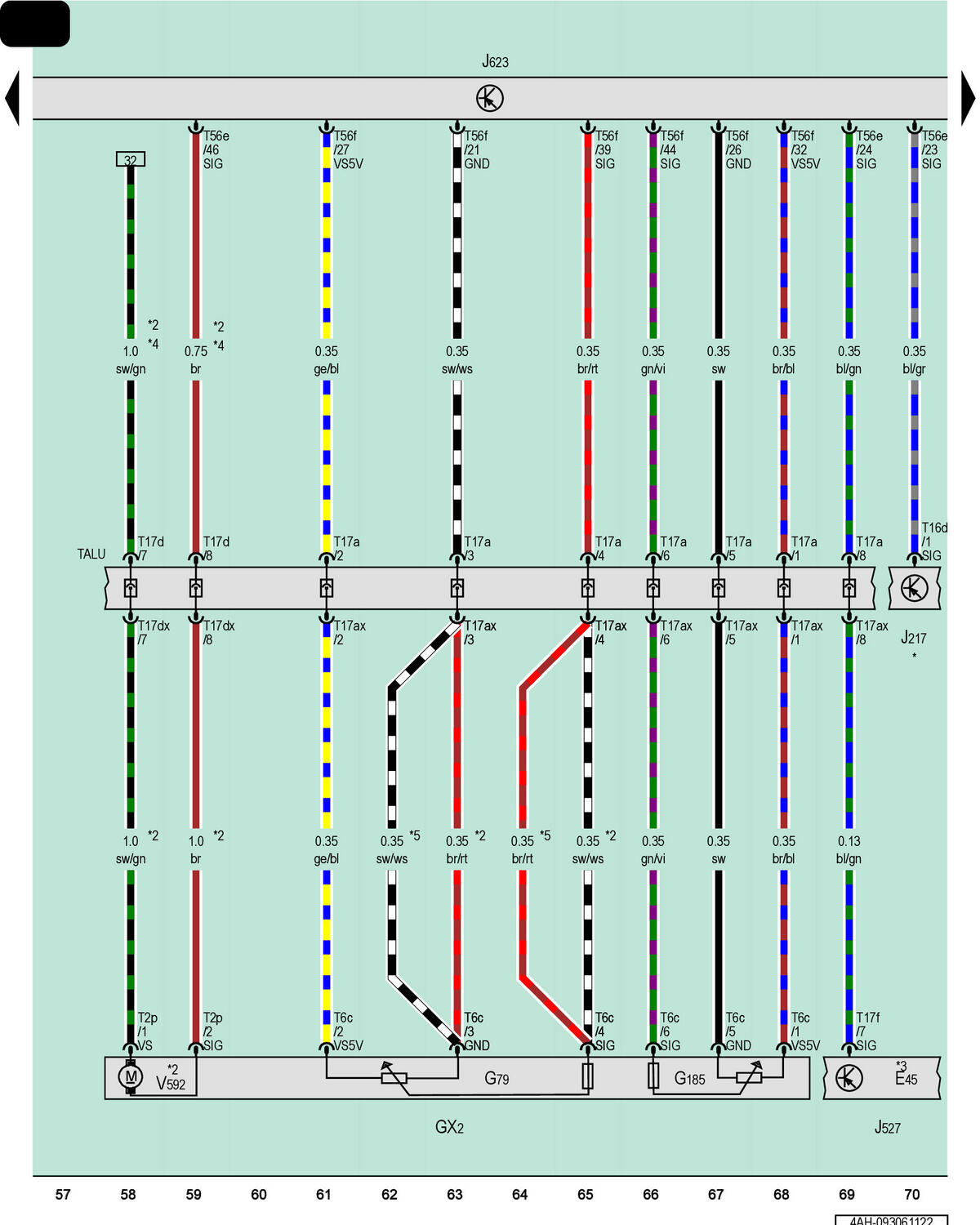

Accelerator Pedal Module, Transmission Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

E45

Cruise Control Switch

GX2

Accelerator Pedal Module

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J217

Transmission Control Module

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module

T2p

2-Pin Connector, Black

T6c

6-Pin Connector, Black

T16d

16-Pin Connector, Black

T17a

17-Pin Connector, White

T17ax

17-Pin Connector, White

T17d

17-Pin Connector, Green

T17dx

17-Pin Connector, Green

T17f

17-Pin Connector, Yellow

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TALU

Coupling Point on Left A-Pillar, Bottom

V592

Active Accelerator Pedal Motor

*

Refer to Applicable Wiring Diagram for Automatic Transmission

*2

Omitted as a Running Change

*3

For Vehicles with Cruise Control System

*4

Depending on Equipment

*5

Running Change
