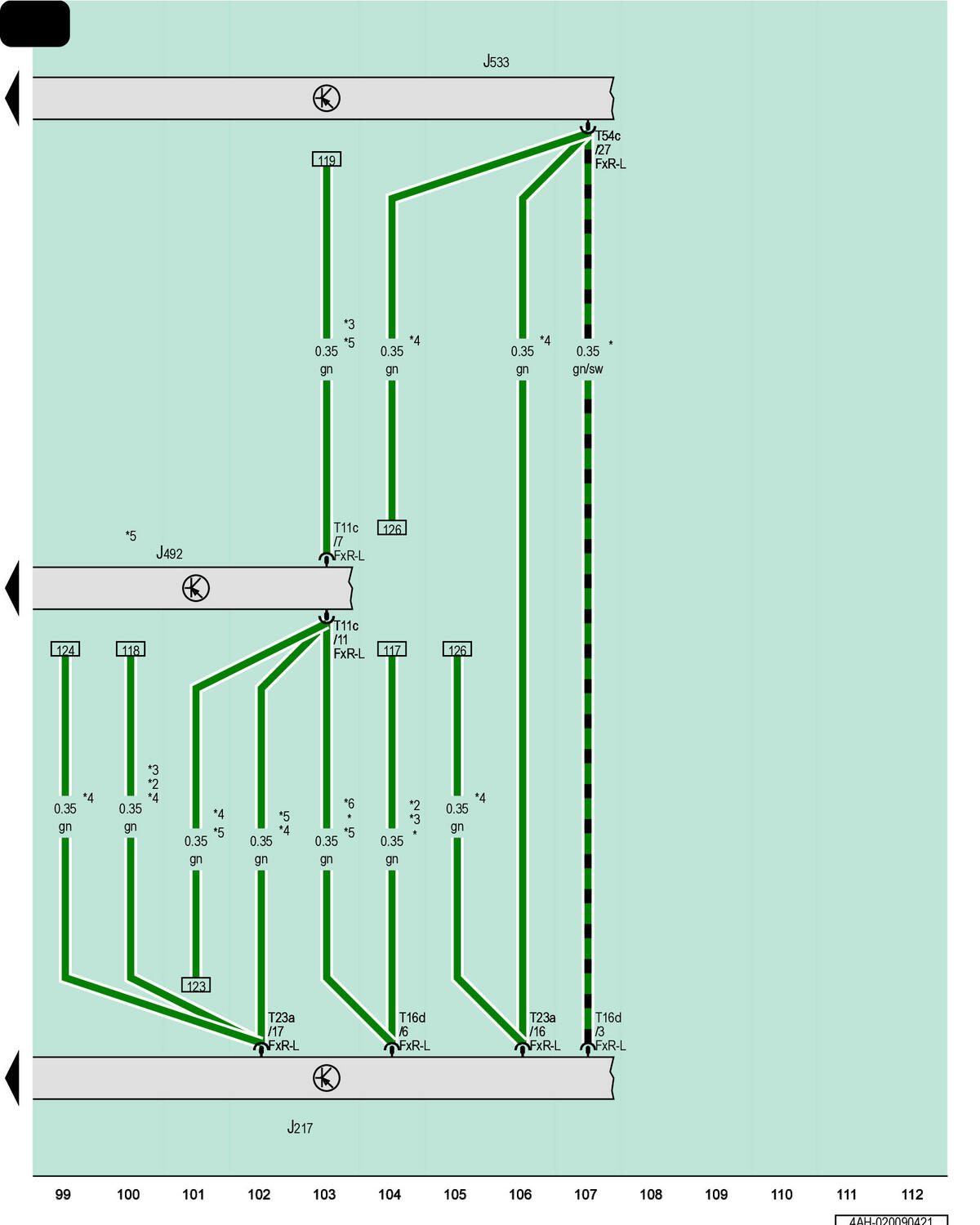

Transmission Control Module, All-Wheel Drive Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J217

Transmission Control Module

J492

All-Wheel Drive Control Module

J533

Data Bus on Board Diagnostic Interface

T11c

11-Pin Connector, Black

T16d

16-Pin Connector, Black

T23a

23-Pin Connector, Black

T54c

54-Pin Connector, Black

*

For Vehicles with 8-Speed Automatic Transmission

*2

For Vehicles Without All-Wheel Drive

*3

For Vehicles with Electromechanical Power Steering

*4

Depending on Equipment

*5

For AWD Vehicles

*6

Omitted as a Running Change
