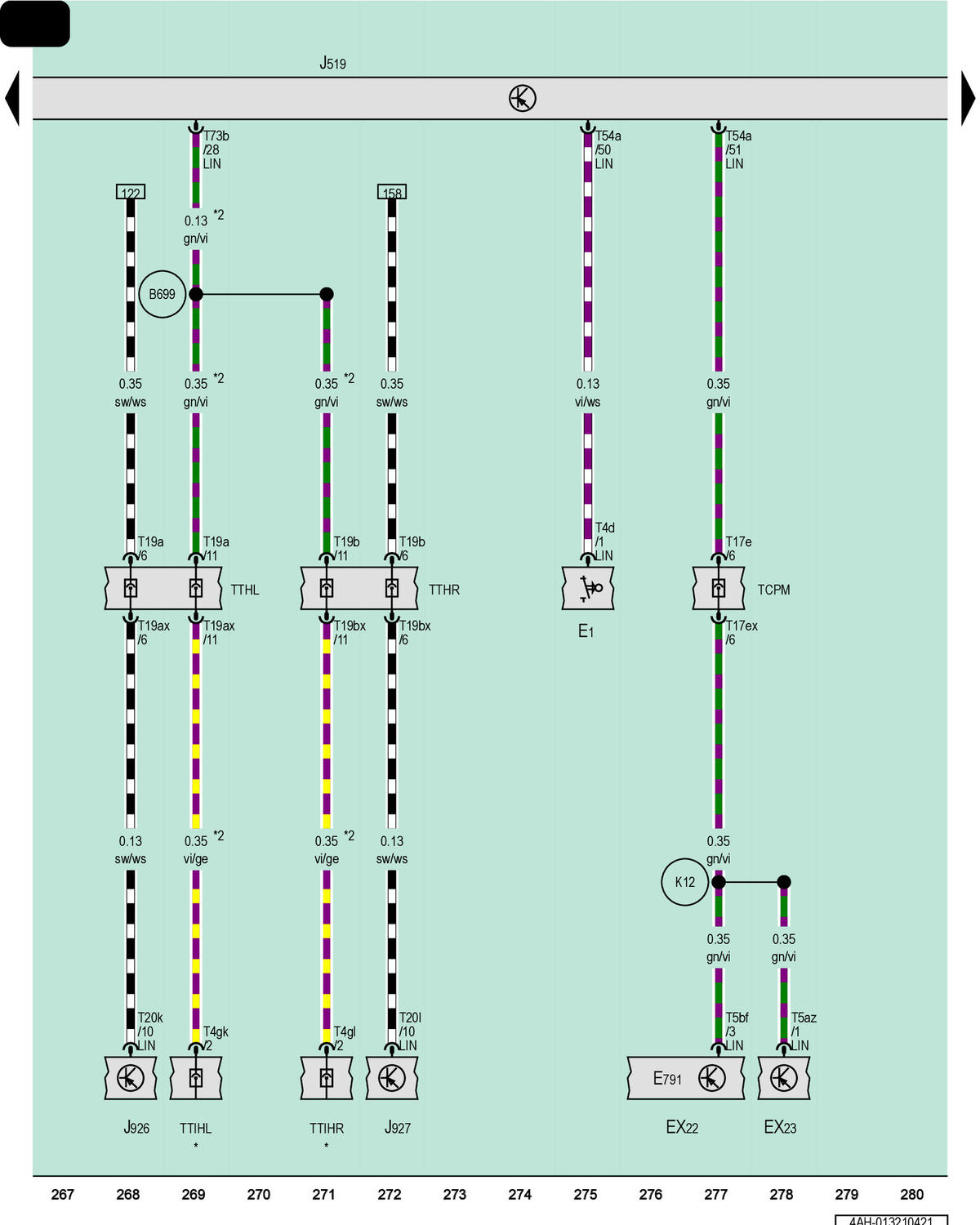

Light Switch, Switch Module In Instrument Panel, Center, Center Console Switch Module 1, Vehicle Electrical System Control Module, Driver Side Rear Door Control Module, Passenger Side Rear Door Control Module, Coupling Point In Right Rear Door
E1
Light Switch
EX22
Switch Module in Instrument Panel, Center
EX23
Center Console Switch Module 1
E791
Control Unit 1 for Driving and Convenience Functions
J519
Vehicle Electrical System Control Module
J926
Driver Side Rear Door Control Module
J927
Passenger Side Rear Door Control Module
T4d
4-Pin Connector, Red
T4gk
4-Pin Connector, Black
T4gl
4-Pin Connector, Black
T5az
5-Pin Connector, Black
T5bf
5-Pin Connector, Brown
T17e
17-Pin Connector, Black
T17ex
17-Pin Connector, Black
T19a
19-Pin Connector, Black
T19ax
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T19bx
19-Pin Connector, Black
T20k
20-Pin Connector, White
T20l
20-Pin Connector, White
T54a
54-Pin Connector, Black
T73b
73-Pin Connector, Black, Black
TCPM
Coupling Point on Instrument Panel, Center
TTHL
Left Rear Door Coupling Point
TTHR
Right Rear Door Coupling Point
TTIHL
Coupling Point in Left Rear Door
TTIHR
Coupling Point in Right Rear Door
B699
LIN Bus Connection 4 (in Main Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
For Vehicles with Ambient Lighting
