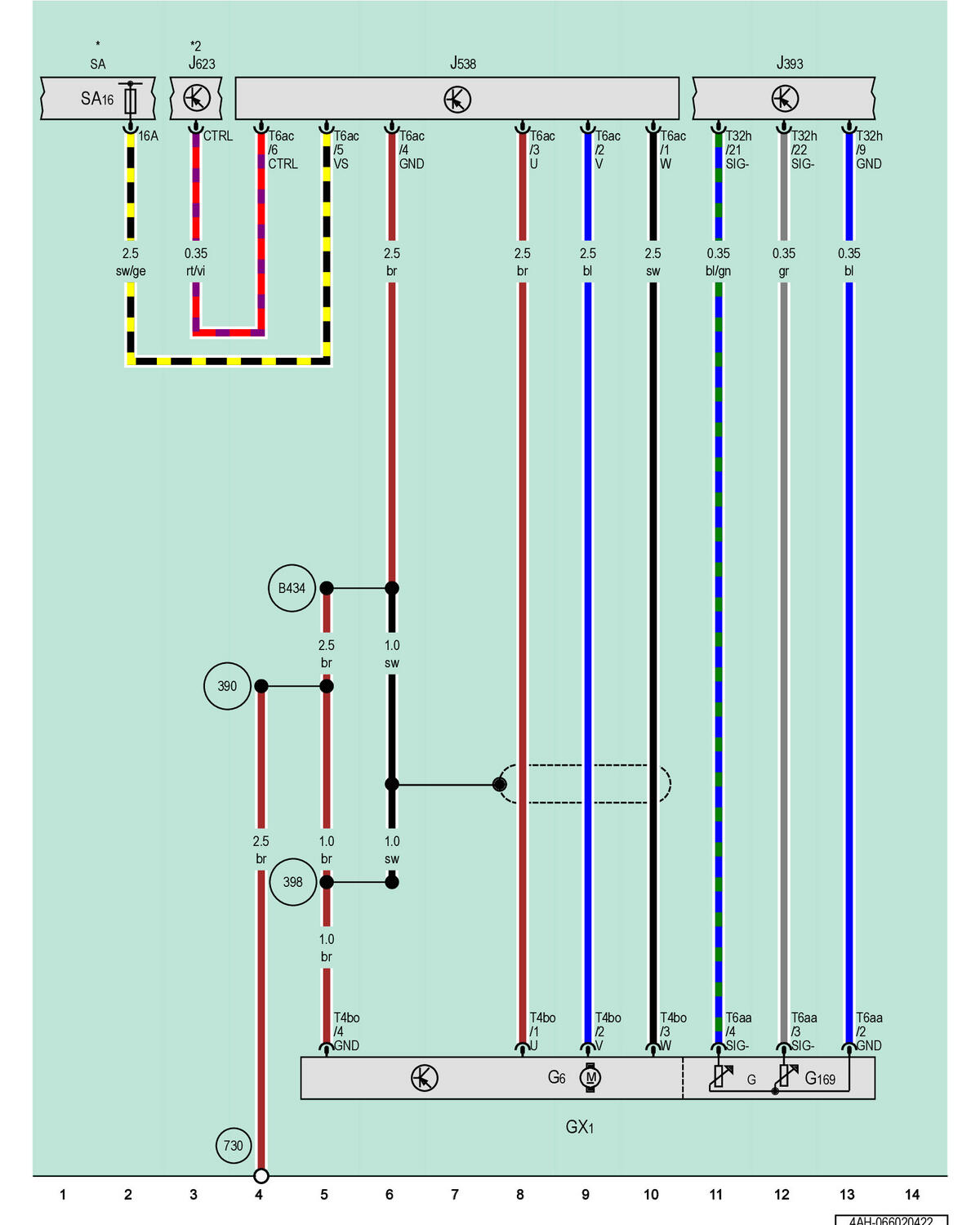

Fuel Level Sensor, Fuel Delivery Unit, Transfer Fuel Pump, Fuel Level Sensor 2, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

G169

Fuel Level Sensor 2

J393

Comfort System Central Control Module

J538

Fuel Pump Control Module

J623

Engine/Motor Control Module

SA

Fuse Panel A

SA16

Fuse 16 (On Fuse Panel A)

T4bo

4-Pin Connector, Black

T6aa

6-Pin Connector, Black

T6ac

6-Pin Connector, Black

T32h

32-Pin Connector, Blue

390

Ground Connection 25 (in Main Wiring Harness)

398

Ground Connection 33 (in Main Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

B434

Shielding Connection 1 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Refer to Applicable Engine Wiring Diagram
