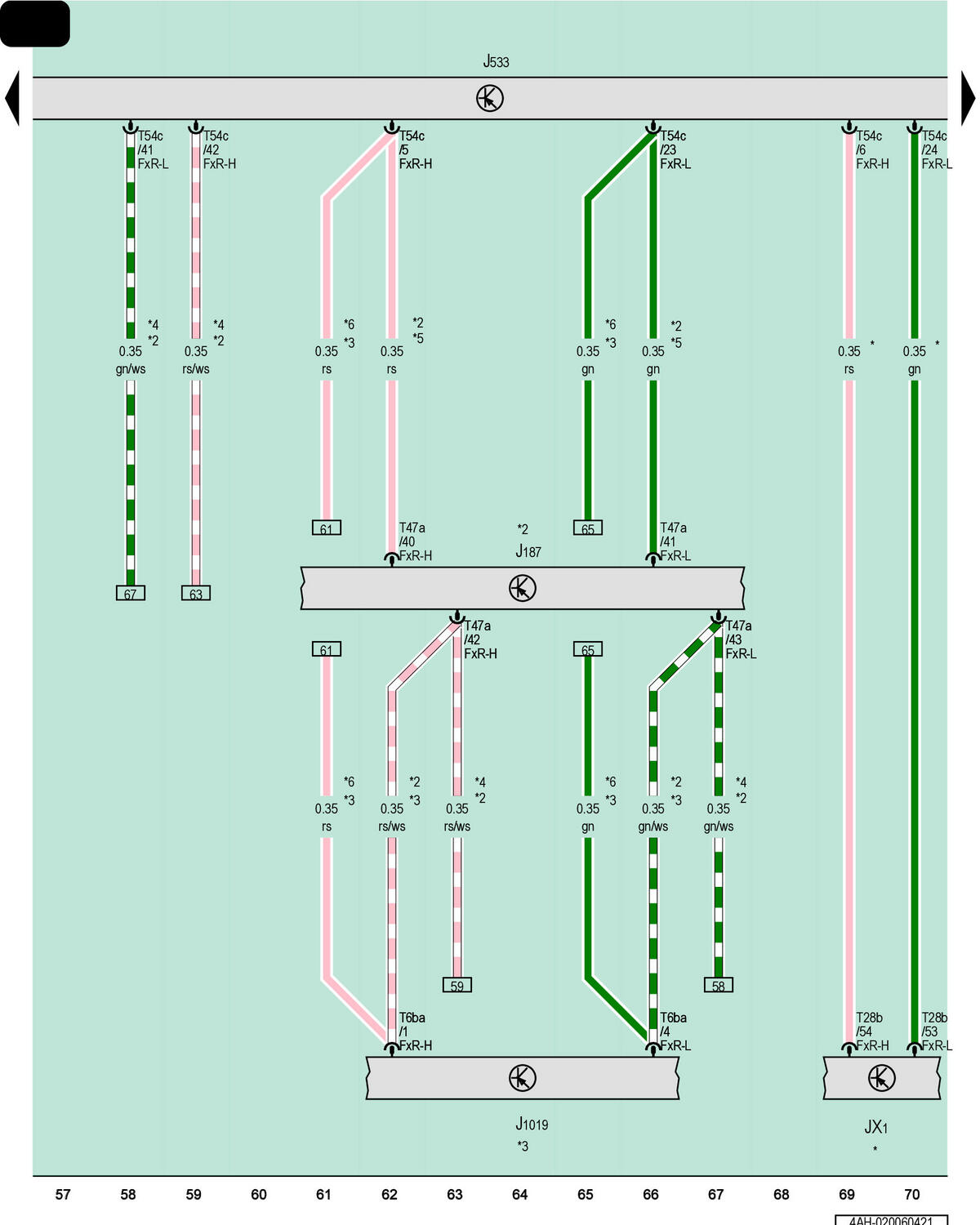

Electric Drive Power And Control Electronics, Differential Lock Control Module, Data Bus On Board Diagnostic Interface, Rear Axle Steering Control Module

Courtesy of AUDI OF AMERICA, LLC

JX1

Electric Drive Power and Control Electronics

J187

Differential Lock Control Module

J533

Data Bus on Board Diagnostic Interface

J1019

Rear Axle Steering Control Module

T6ba

6-Pin Connector, Black

T28b

28-Pin Connector, Black

T47a

47-Pin Connector, Black

T54c

54-Pin Connector, Black

*

For Vehicles with Hybrid Drive

*2

For Vehicles with Rear Final Drive - Sport Differential

*3

For Vehicles with Rear Axle Steering

*4

For Vehicles Without Rear Axle Steering

*5

Version 1

*6

Version 2
