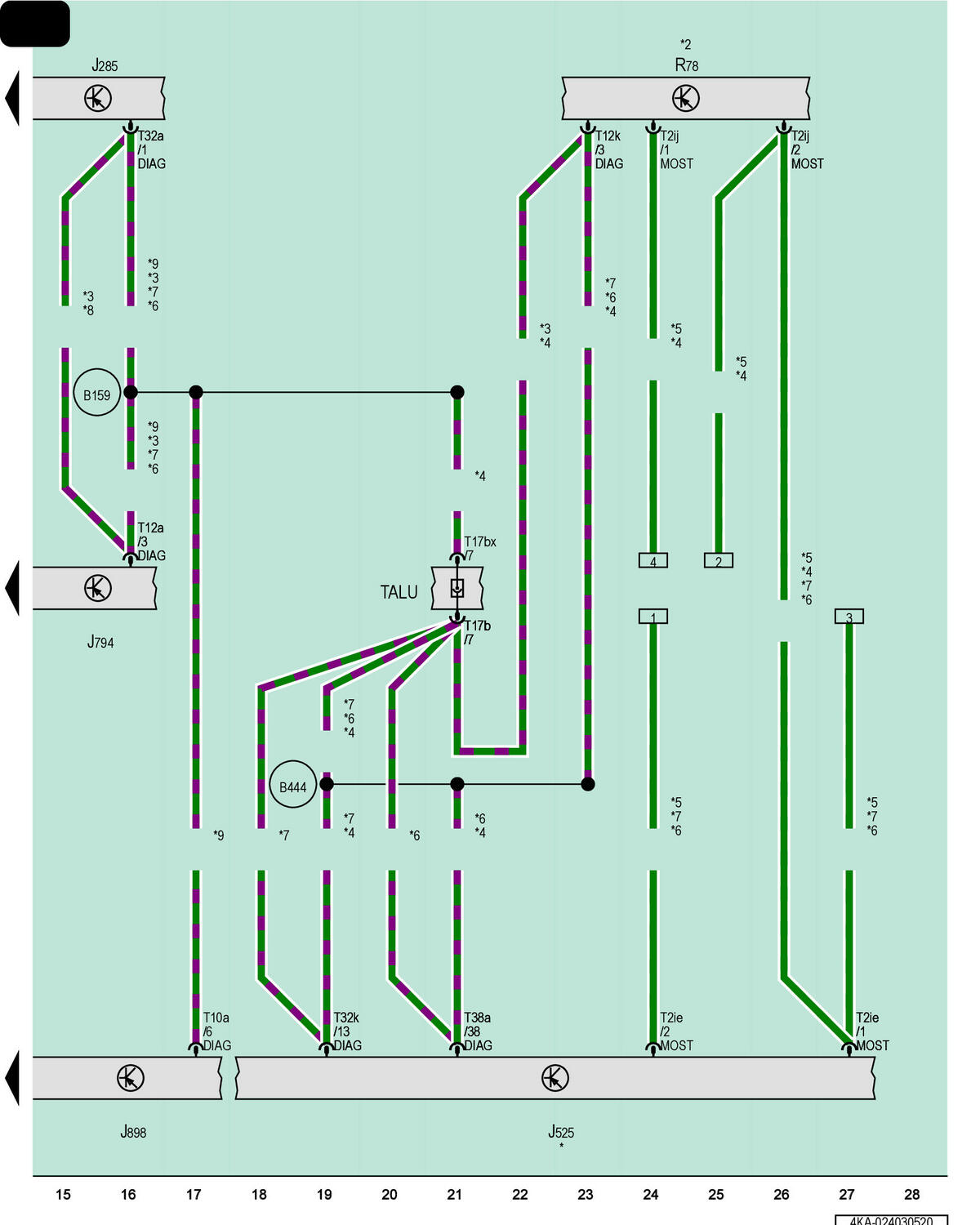

Instrument Cluster Control Module, Digital Sound System Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, TV Tuner
J285
Instrument Cluster Control Module
J525
Digital Sound System Control Module
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
R78
TV Tuner
T2ie
2-Pin Connector, Black
T2ij
2-Pin Connector, Black
T10a
10-Pin Connector, Black
T12a
12-Pin Connector, Gray
T12k
12-Pin Connector, Black
T17b
17-Pin Connector, Blue
T17bx
17-Pin Connector, Blue
T32a
32-Pin Connector, Gray
T32k
32-Pin Connector, Black
T38a
38-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
B159
Diagnostic Connection (in Interior Wiring Harness)
B444
OBD Connection 1 (in Main Wiring Harness)
*
Refer to Applicable Sound System Wiring Diagram
*2
Refer to the Applicable TV Tuner Wiring Diagram
*3
For Vehicles with Standard Sound System
*4
For Vehicles with TV Tuner
*5
Fiber Optic Cable
*6
For Vehicles with Bose Sound System
*7
For Vehicles with Bang & Olufsen Sound System
*8
For Vehicles with MMI
*9
For Vehicles with Windshield Projection
