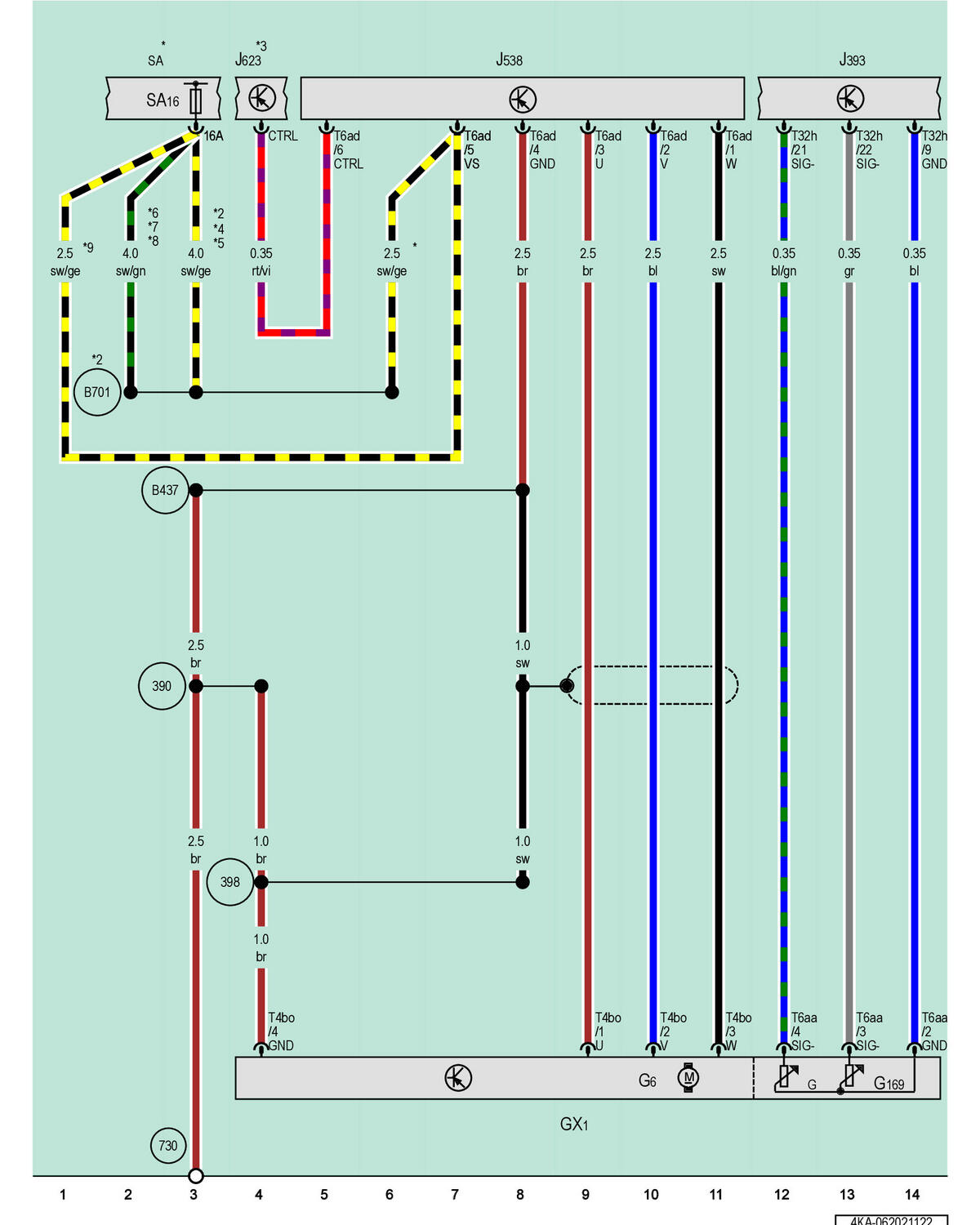

Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module
G
Fuel Level Sensor
GX1
Fuel Delivery Unit
G6
Transfer Fuel Pump
G169
Fuel Level Sensor 2
J393
Comfort System Central Control Module
J538
Fuel Pump Control Module
J623
Engine/Motor Control Module
SA
Fuse Panel A
SA16
Fuse 16 (On Fuse Panel A)
T4bo
4-Pin Connector, Black
T6aa
6-Pin Connector, Black
T6ad
6-Pin Connector, Black
T32h
32-Pin Connector, Blue
390
Ground Connection 25 (in Main Wiring Harness)
398
Ground Connection 33 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
B437
Ground Connection 1 (in Main Wiring Harness)
B701
Leak Detection Pump Connection (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Through August 2021
*3
Refer to Applicable Engine Wiring Diagram
*4
Through November 2020
*5
From March 2021
*6
From November 2020
*7
Through March 2021
*8
For Vehicles Without China Equipment
*9
From August 2021
