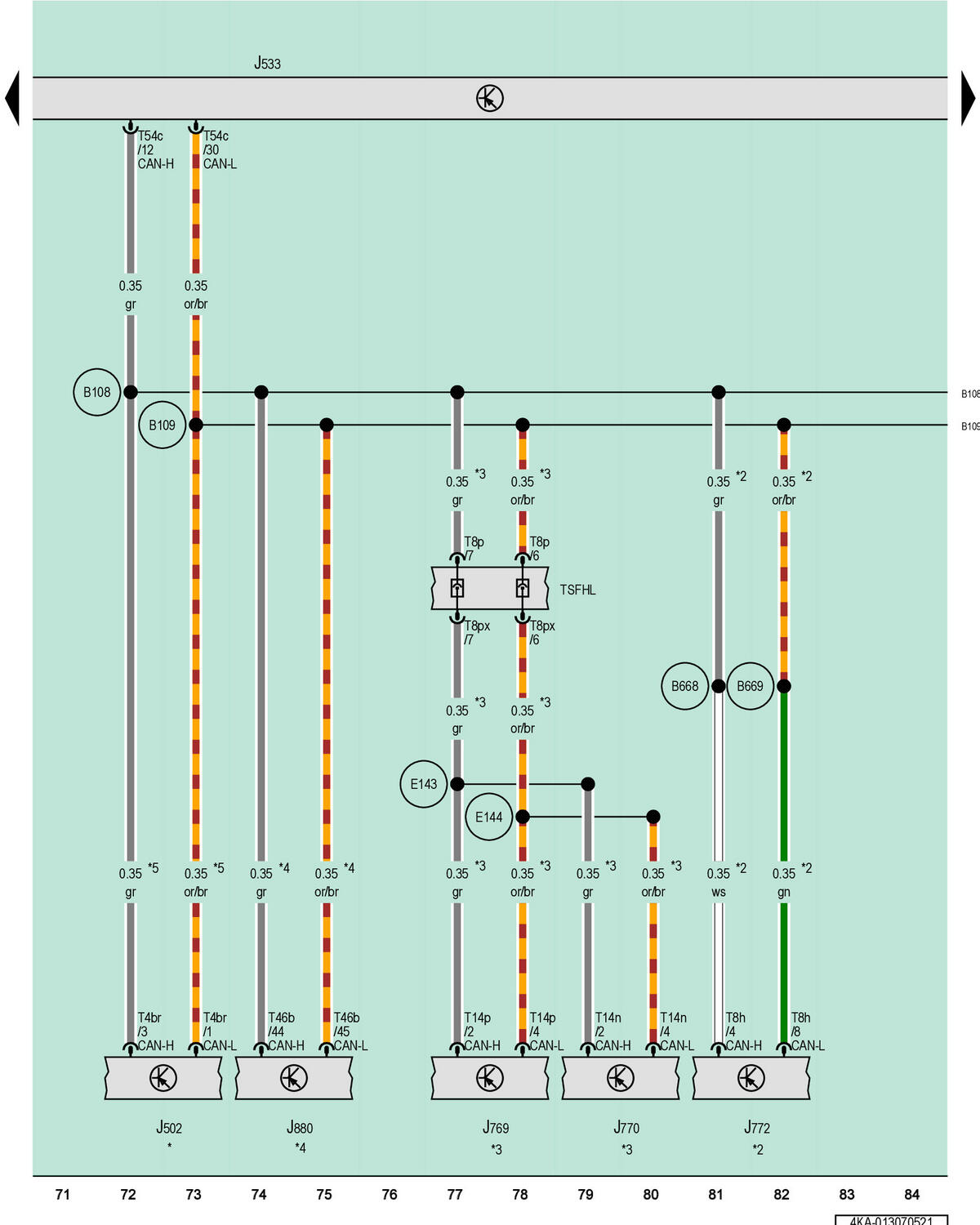

Tire Pressure Monitoring Control Module, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Rearview Camera System Control Module, Reducing Agent Metering System Control Module
J502
Tire Pressure Monitoring Control Module
J533
Data Bus on Board Diagnostic Interface
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
J772
Rearview Camera System Control Module
J880
Reducing Agent Metering System Control Module
T4br
4-Pin Connector, Gray
T8h
8-Pin Connector, Black
T8p
8-Pin Connector, Black
T8px
8-Pin Connector, Black
T14n
14-Pin Connector, Black
T14p
14-Pin Connector, Black
T46b
46-Pin Connector, Black
T54c
54-Pin Connector, Black
TSFHL
Coupling Point on Left Rear Bumper
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
E143
Connection 1 (CAN Bus Extended High) (in Rear Bumper Wiring Harness)
E144
Connection 1 (CAN Bus Extended Low) (in Rear Bumper Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Tire Pressure Monitoring System
*2
For Vehicles with Rearview Camera System
*3
For Vehicles with Lane Change Assistance
*4
For Vehicles with Reducing Agent Metering System
*5
For Vehicles with Tire Pressure Monitoring
