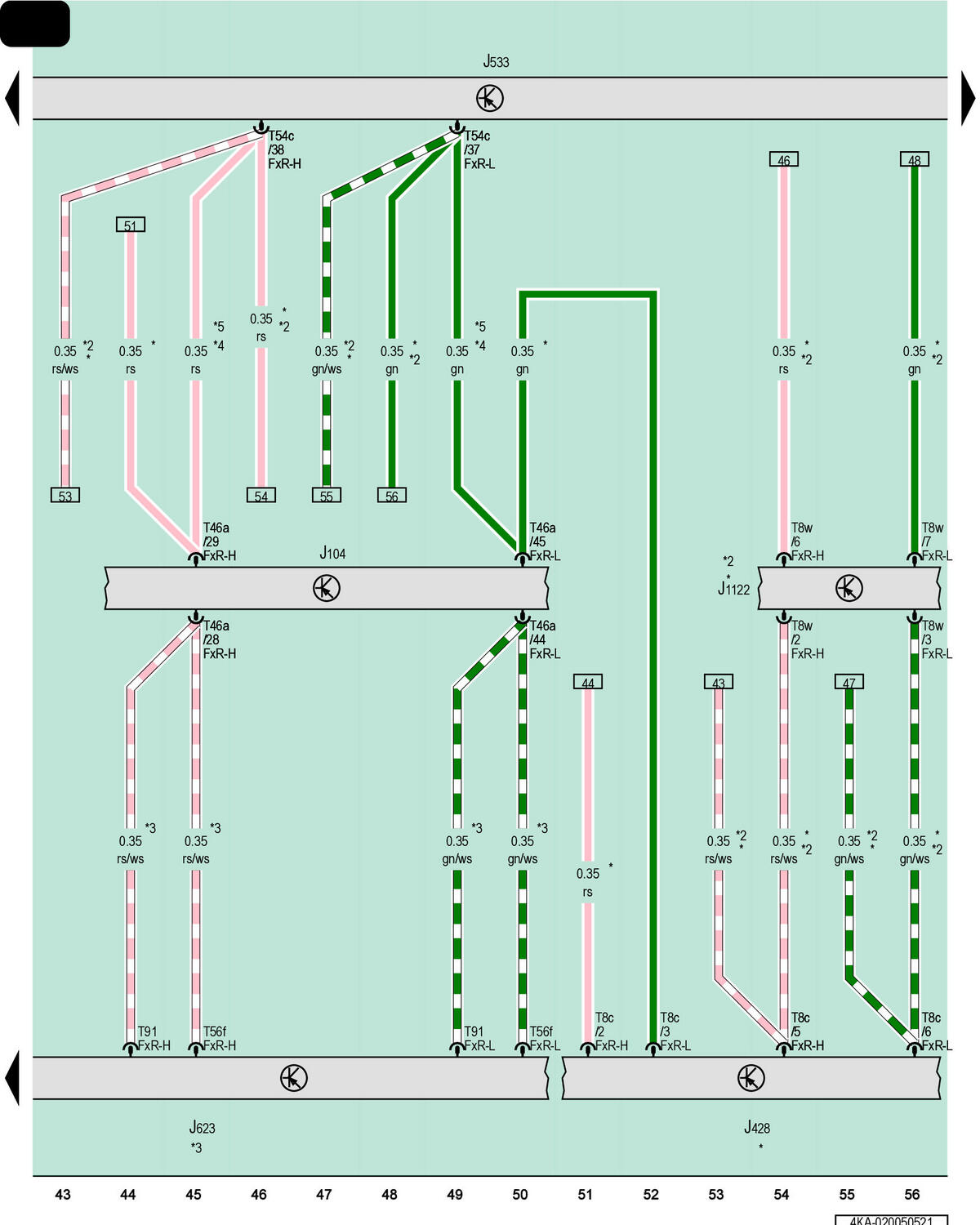

Abs Control Module, Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Laser Distance Regulation Control Module

GWW4KA-020050521Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J428

Control Module for Adaptive Cruise Control

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

J1122

Laser Distance Regulation Control Module

T8c

8-Pin Connector, Black

T8w

8-Pin Connector, Black

T46a

46-Pin Connector, Black

T54c

54-Pin Connector, Black

T56f

56-Pin Connector, Black

T91

91-Pin Connector, Black

For Vehicles with Adaptive Cruise Control (ACC)

*2

Depending on Equipment

*3

Refer to Applicable Engine Wiring Diagram

*4

For Vehicles with Cruise Control System

*5

For Vehicles Without Adaptive Cruise Control (ACC)
