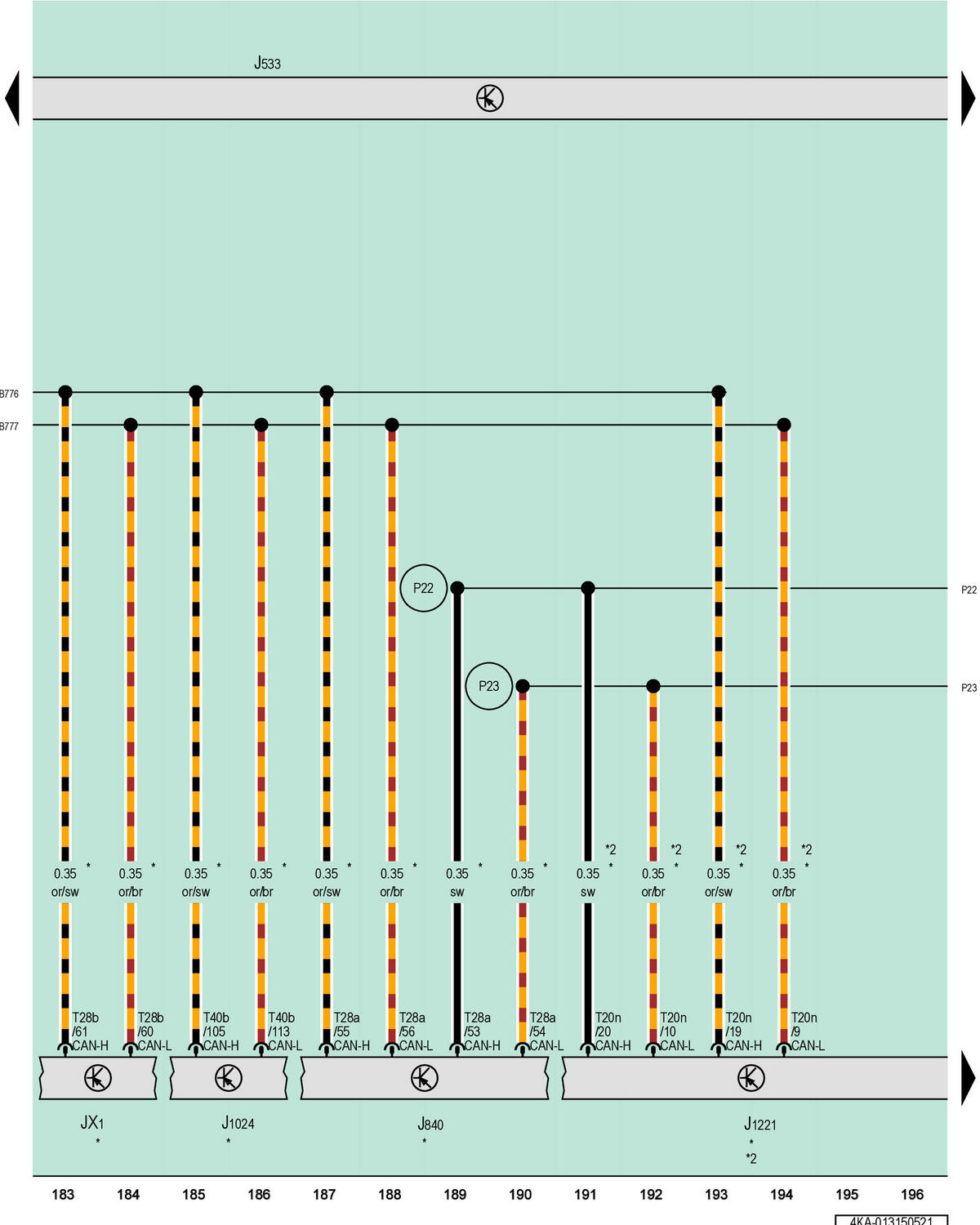

Electric Drive Power And Control Electronics, Data Bus On Board Diagnostic Interface, Battery Regulation Control Module, Thermal Management Control Module, Telematics Interface Control Module

Courtesy of AUDI OF AMERICA, LLC

JX1

Electric Drive Power and Control Electronics

J533

Data Bus on Board Diagnostic Interface

J840

Battery Regulation Control Module

J1024

Thermal Management Control Module

J1221

Telematics Interface Control Module

T20n

20-Pin Connector, Brown

T28a

28-Pin Connector, Black

T28b

28-Pin Connector, Black

T40b

40-Pin Connector, Black

B776

Hybrid CAN Bus High Connection 1 (in Main Wiring Harness)

B777

Hybrid CAN Bus Low Connection 1 (in Main Wiring Harness)

P22

CAN Bus High-Voltage Battery High Connection (in Main Wiring Harness)

P23

CAN Bus High-Voltage Battery Low Connection (in Main Wiring Harness)

For Vehicles with Hybrid Drive

For Vehicles with China Equipment
