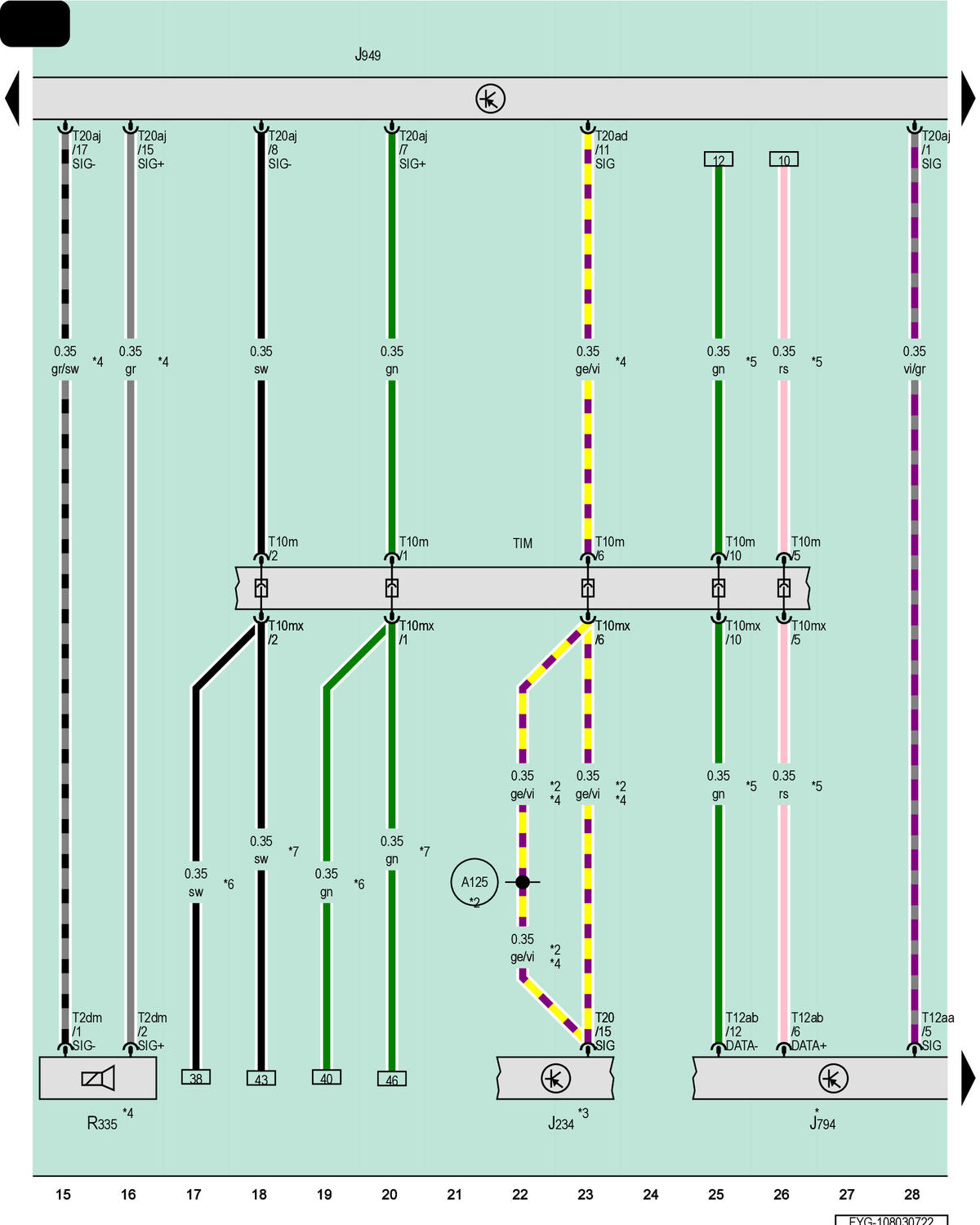

Airbag Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker

Courtesy of AUDI

J234

Airbag Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

R335

Emergency Call Module Speaker

T2dm

2-Pin Connector, Black

T10m

10-Pin Connector, Black

T10mx

10-Pin Connector, Black

T12aa

12-Pin Connector, Blue

T12ab

12-Pin Connector, Green

T20

20-Pin Connector, Yellow

T20ad

20-Pin Connector, Black

T20aj

20-Pin Connector, Naturally Cloudy

TIM

Coupling Point in Interior, Center

A125

Crash Signal Connection (in Instrument Panel Wiring Harness)

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*2

Depending on Equipment

*3

Refer to Applicable Airbag Wiring Diagram

*4

For Vehicles with Emergency Call Function

*5

Ethernet Connection

*6

For LHD Vehicles

*7

For RHD Vehicles
