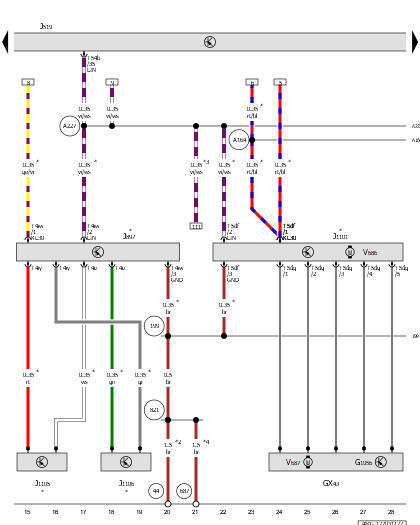

Fragrance Diffuser System Functional Unit, Vehicle Electrical System Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module

Courtesy of AUDI OF AMERICA, LLC

GX43

Fragrance Diffuser System Functional Unit

G1056

Fragrance Diffuser System Temperature Sensor

J519

Vehicle Electrical System Control Module

J897

Ionizer Control Module

J1101

Fragrance Diffuser System Control Module

J1105

Driver Side Ionizer

J1106

Front Passenger Side Ionizer

T4iw

4-Pin Connector, Black

T4iy

4-Pin Connector, Red

T4iz

4-Pin Connector, Brown

T5df

5-Pin Connector, Black

T5dg

5-Pin Connector, Brown

T54b

54-Pin Connector, Black

V686

Fragrance Diffuser System Blower

V687

Fragrance Diffuser System Actuator

Ground Connection on A-Pillar, Lower Left

199

Ground Connection 3 (in Instrument Panel Wiring Harness)

687

Ground Connection 1 on Center Tunnel

821

Ground Connection 7 (in Instrument Panel Wiring Harness)

A164

Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)

A227

LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

Depending on Equipment

For LHD Vehicles

For Vehicles with Auxiliary Heater

For RHD Vehicles
