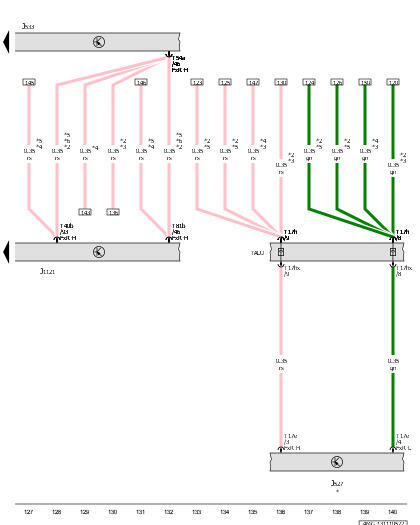

Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Driver Assistance Systems Control Module

Courtesy of AUDI

J527

Steering Column Electronics Control Module

J533

Data Bus on Board Diagnostic Interface

J1121

Driver Assistance Systems Control Module

T17e

17-Pin Connector, Yellow

T17h

17-Pin Connector, Blue

T17hx

17-Pin Connector, Blue

T40b

40-Pin Connector, Black

T54a

54-Pin Connector, Black

T81b

81-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

*

Refer to Applicable Steering Column Electronics Wiring Diagram

*2

For Vehicles Without Level Control System

*3

Not for Vehicles with Driver Assistance System

*4

For Vehicles with Level Control System

*5

For Driver Assistance System

*6

Depending on Equipment
