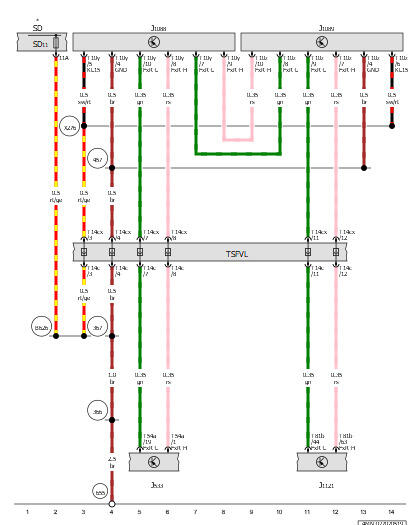

Data Bus On Board Diagnostic Interface, Control Module For Left Front Object Detection Radar Sensor, Control Module For Right Front Object Detection Radar Sensor, Driver Assistance Systems Control Module
J533
Data Bus on Board Diagnostic Interface
J1088
Control Module for Left Front Object Detection Radar Sensor
J1089
Control Module for Right Front Object Detection Radar Sensor
J1121
Driver Assistance Systems Control Module
SD
Fuse Panel D
SD11
Fuse 11 (On Fuse Panel D)
T10y
10-Pin Connector, Black
T10z
10-Pin Connector, Black
T14c
14-Pin Connector, Brown
T14cx
14-Pin Connector, Brown
T54a
54-Pin Connector, Black
T81b
81-Pin Connector, Black
TSFVL
Coupling Point on Left Front Bumper
366
Ground Connection 1 (in Main Wiring Harness)
367
Ground Connection 2 (in Main Wiring Harness)
457
Ground Connection 2 (in Front Bumper Wiring Harness)
655
Ground Connection on Left Headlamp
B626
Positive Connection 2 (15) (in Main Wiring Harness)
X276
Connection (in Front Bumper Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
