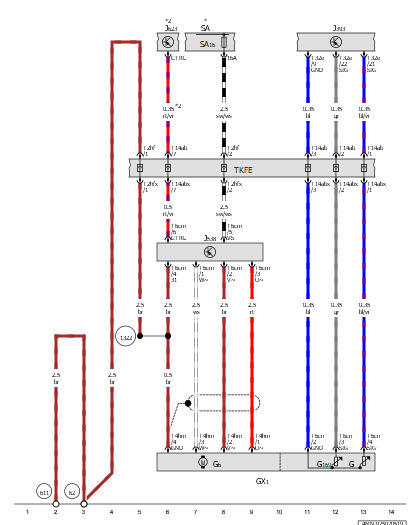

Fuel Level Sensor, Fuel Delivery Unit, Fuel Level Sensor 2, Comfort System Central Control Module, Fuel Pump Control Module, Engine/Motor Control Module
G
Fuel Level Sensor
GX1
Fuel Delivery Unit
G6
Transfer Fuel Pump
G169
Fuel Level Sensor 2
J393
Comfort System Central Control Module
J538
Fuel Pump Control Module
J623
Engine/Motor Control Module
SA
Fuse Panel A
SA16
Fuse 16 (On Fuse Panel A)
T2hf
2-Pin Connector, Black
T2hfx
2-Pin Connector, Black
T4hm
4-Pin Connector, Black
T6cm
6-Pin Connector, Black
T6cn
6-Pin Connector, Black
T14ab
14-Pin Connector, Black
T14abx
14-Pin Connector, Black
T32e
32-Pin Connector, Blue
TKFE
Fuel Delivery Unit Coupling Point
62
Ground Connection on Right C-Pillar
611
Ground Connection on Fuel Tank Filler Neck
1322
Ground Connection (in Tank Prewiring Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to Applicable Engine Wiring Diagram
