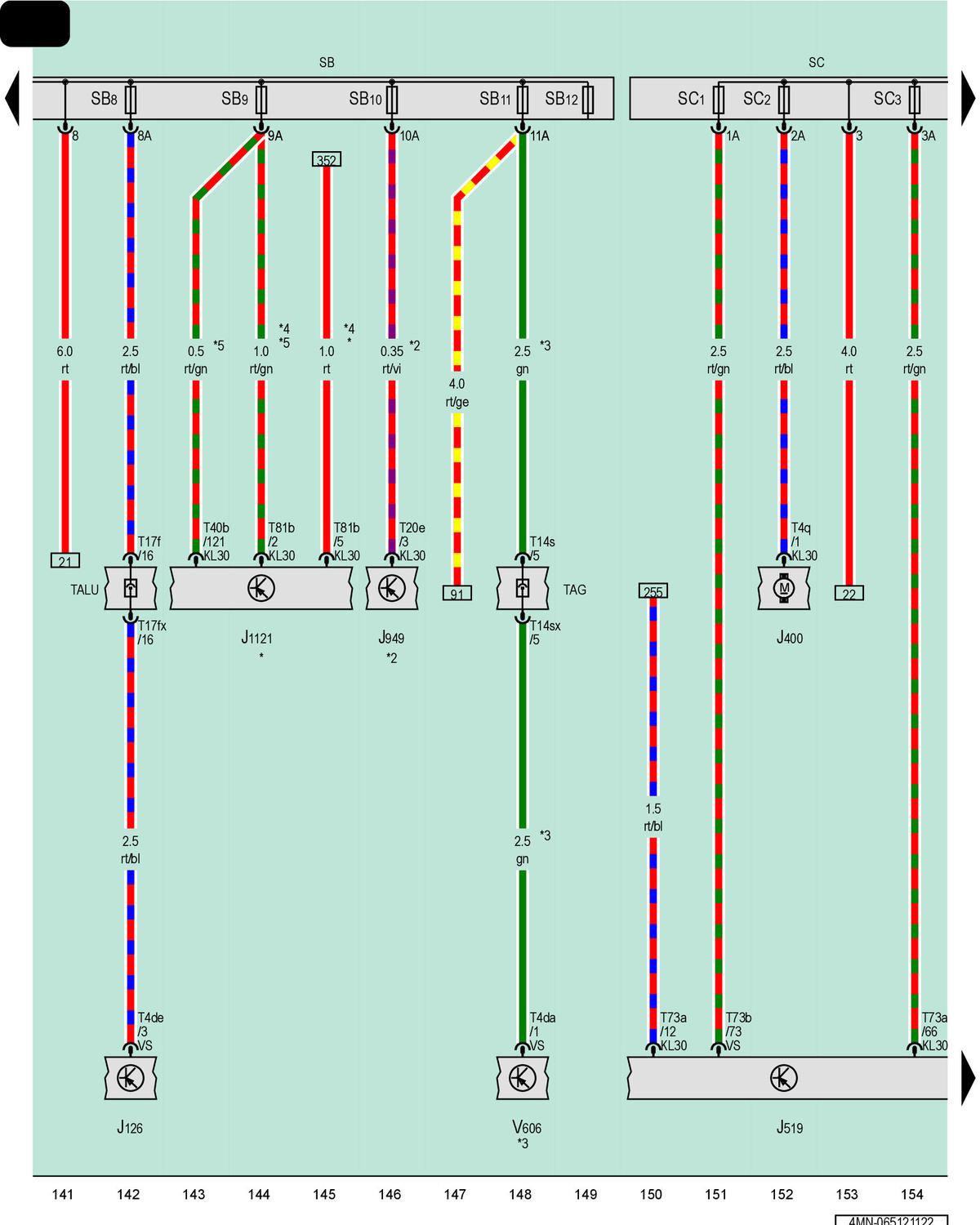

Fresh Air Blower Control Module, Wiper Motor Control Module, Vehicle Electrical System Control Module, Control Module For Emergency Call Module And Communication Unit, Driver Assistance Systems Control Module, Fuse Panel B, Fuse Panel C
J126
Fresh Air Blower Control Module
J400
Wiper Motor Control Module
J519
Vehicle Electrical System Control Module
J949
Control Module for Emergency Call Module and Communication Unit
J1121
Driver Assistance Systems Control Module
SB
Fuse Panel B, Left A-Pillar, Bottom, Behind the Side Trim Panel
SC
Fuse Panel C, Left A-Pillar, Bottom, Behind the Side Trim Panel
SC1
Fuse 1 (On Fuse Panel C)
SC2
Fuse 2 (On Fuse Panel C)
SC3
Fuse 3 (On Fuse Panel C)
SB8
Fuse 8 (On Fuse Panel B)
SB9
Fuse 9 (On Fuse Panel B)
SB10
Fuse 10 (On Fuse Panel B)
SB11
Fuse 11 (On Fuse Panel B)
SB12
Fuse 12 (On Fuse Panel B)
T4da
4-Pin Connector, Black
T4de
4-Pin Connector, Black
T4q
4-Pin Connector, Black
T14s
14-Pin Connector, Gray
T14sx
14-Pin Connector, Gray
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T20e
20-Pin Connector, Black
T40b
40-Pin Connector, Black
T73a
73-Pin Connector, Black, Black
T73b
73-Pin Connector, Black, Naturally Cloudy
T81b
81-Pin Connector, Black
TAG
Automatic Transmission Coupling Point
TALU
Coupling Point on Left A-Pillar, Bottom
V606
Decoupler Actuator
*
For Driver Assistance System
*2
For Vehicles with Emergency Call Module
*3
For Vehicles with Hybrid Drive
*4
Diameter Depends on Equipment
*5
Depending on Equipment
