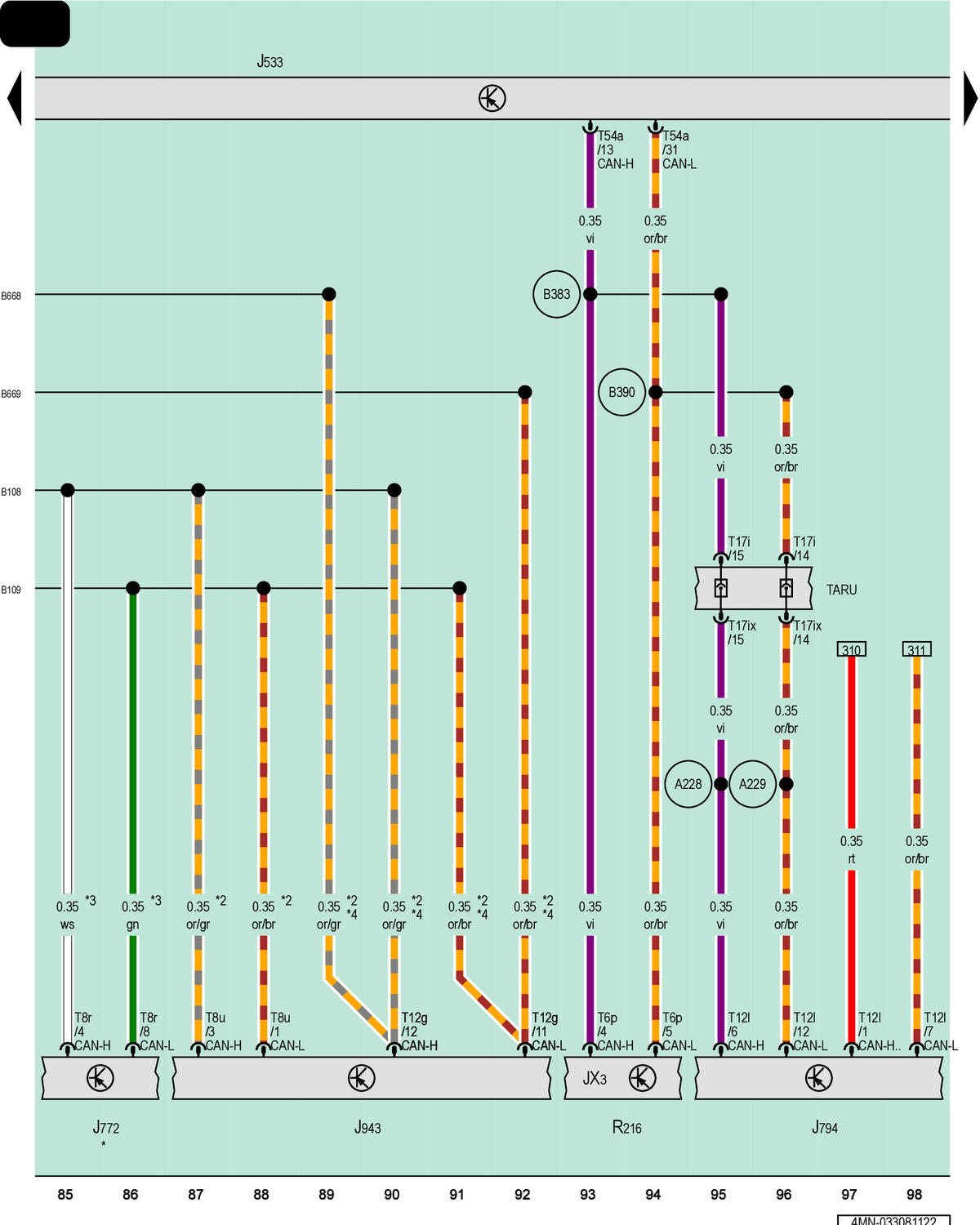

Data Bus On Board Diagnostic Interface, Rearview Camera System Control Module, Information Electronics Control Module 1, Engine Sound Generator Control Module, Roof Antenna
JX3
Roof Antenna Control Module
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
J794
Information Electronics Control Module 1
J943
Engine Sound Generator Control Module
R216
Roof Antenna
T6p
6-Pin Connector, Black
T8r
8-Pin Connector, Black
T8u
8-Pin Connector, Black
T12g
12-Pin Connector, Black
T12l
12-Pin Connector, Gray
T17i
17-Pin Connector, Blue
T17ix
17-Pin Connector, Blue
T54a
54-Pin Connector, Black
TARU
Coupling Point on Right A-Pillar, Bottom
A228
Suspension/Instrument Cluster CAN Bus High Connection 1 (in Instrument Panel Wiring Harness)
A229
Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Instrument Panel Wiring Harness)
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B383
Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)
B390
Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*2
Depending on Equipment
*3
For Vehicles with Rearview Camera System
*4
For Vehicles with Hybrid Drive
