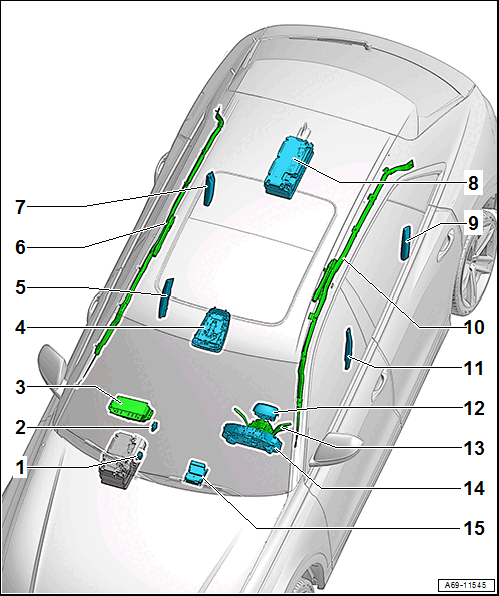

Component Location Overview - Airbag System
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Battery Interrupt Igniter -N253-
- Refer to BATTERY INTERRUPT IGNITER
- Front Passenger Airbag Deactivation Key Switch -E224-
- Rest of World equipment/market version:
- Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING (NOT FOR NORTH AMERICA MARKET)
- Front Passenger Airbag
- With
- Front Passenger Airbag Igniter 1 -N131-
- Front Passenger Airbag Igniter 2 -N132-
- North American versions: Front Passenger Airbag Release Valve Igniter -N491-
- Rest of World versions: locking and activation possible via the Front Passenger Airbag Deactivation Key Switch -E224-
- Refer to OVERVIEW - FRONT PASSENGER AIRBAG
- With
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Integrated in the Front Roof Module - WX3-, cannot be replaced separately if faulty.
- Replace the Front Roof Module -WX3-. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Thorax Airbag on Front Passenger Side
- With Front Passenger Thorax Airbag Igniter -N200-
- Refer to OVERVIEW - FRONT THORAX AIRBAG
- Front Passenger Head Curtain Airbag
- With Front Passenger Head Curtain Airbag Igniter -N252-
- Refer to OVERVIEW - HEAD CURTAIN AIRBAG
- Rear Thorax Airbag on Front Passenger Side
- With Passenger Side Rear Thorax Airbag Igniter -N202-
- Refer to OVERVIEW - REAR THORAX AIRBAG
- Igniter for Battery 2 Interruption -N751-
- Refer to BATTERY INTERRUPT IGNITER
- Rear Thorax Airbag on Driver Side
- With Driver Side Rear Thorax Airbag Igniter -N201-
- Refer to OVERVIEW - REAR THORAX AIRBAG
- Driver Head Curtain Airbag
- With Driver Head Curtain Airbag Igniter -N251-
- Refer to OVERVIEW - HEAD CURTAIN AIRBAG
- Thorax Airbag on Driver Side
- With Driver Thorax Airbag Igniter -N199-
- Refer to OVERVIEW - FRONT THORAX AIRBAG
- Driver Side Airbag
- With
- Driver Airbag Igniter -N95-
- Driver Airbag Release Valve Igniter -N490-
- Refer to OVERVIEW - DRIVER SIDE AIRBAG
- With
- Steering Column Electronics Control Module -J527-
- With Spiral Spring -F350-
- Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
- Airbag Indicator Lamp -K75-
- Integrated in the instrument cluster.
- Replace the instrument cluster if faulty. Refer to OVERVIEW - INSTRUMENT CLUSTER .
- Airbag Control Module -J234-
- Refer to OVERVIEW - AIRBAG CONTROL MODULE
