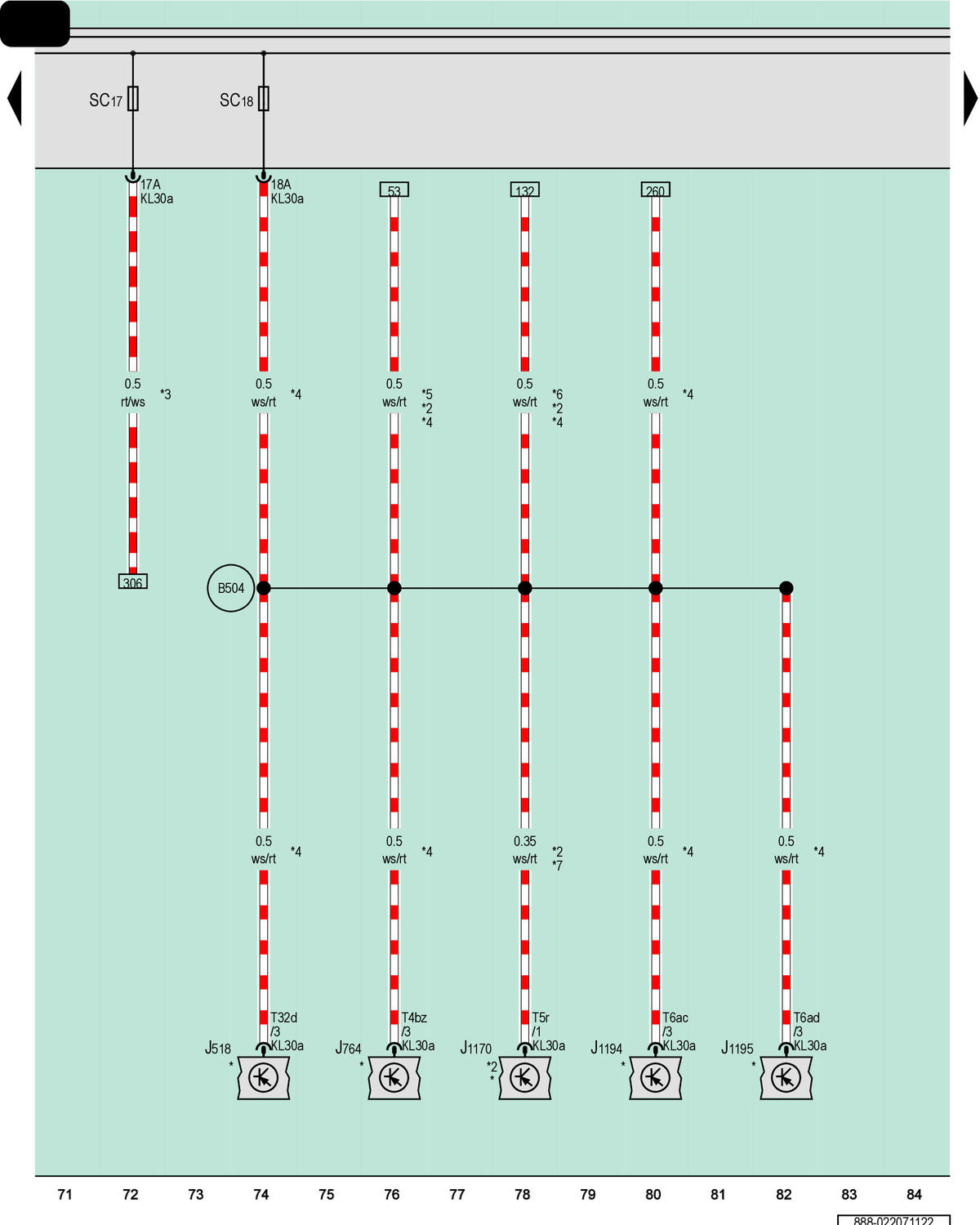

Access/Start Authorization Control Module, Electronic Steering Column Lock Control Module, Near Field Communication Control Module 2, Burglary Protection Control Module 4, Burglary Protection Control Module 5, Fuse Panel C
J518
Access/Start Authorization Control Module
J764
Electronic Steering Column Lock Control Module
J1170
Near Field Communication Control Module 2
J1194
Burglary Protection Control Module 4
J1195
Burglary Protection Control Module 5
SC
Fuse Panel C
SC17
Fuse 17 (On Fuse Panel C)
SC18
Fuse 18 (On Fuse Panel C)
T4bz
4-Pin Connector, Black
T5r
5-Pin Connector, Black
T6ac
6-Pin Connector, Black
T6ad
6-Pin Connector, Black
T32d
32-Pin Connector, Gray
B504
Positive Connection 8 (30a) (in Interior Wiring Harness)
*
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*2
For Vehicles with Near Field Communication
*3
For Vehicles with Diesel Engine
*4
Diameter Depends on Equipment
*5
For LHD Vehicles
*6
For RHD Vehicles
*7
The Color of the Wires Depends on Vehicle Equipment
