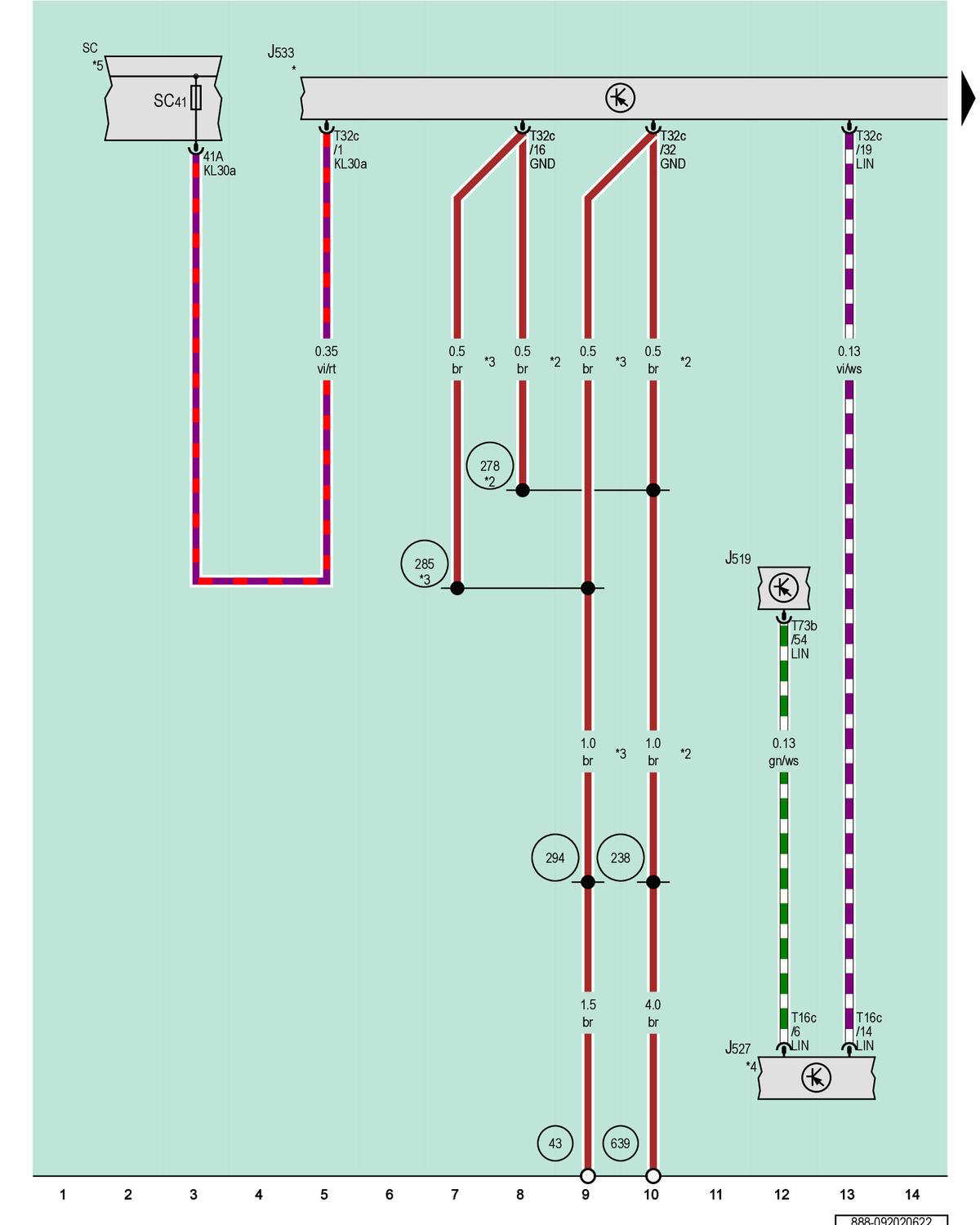

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C
J519
Vehicle Electrical System Control Module
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
SC
Fuse Panel C
SC41
Fuse 41 (On Fuse Panel C)
T16c
16-Pin Connector, Black
T32c
32-Pin Connector, Black
T73b
73-Pin Connector, Black
43
Ground Connection on A-Pillar, Lower Right
238
Ground Connection 1 (in Interior Wiring Harness)
278
Ground Connection 4 (in Interior Wiring Harness)
285
Ground Connection 7 (in Interior Wiring Harness)
294
Ground Connection 9 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
For LHD Vehicles
*3
For RHD Vehicles
*4
Refer to Applicable Steering Column Electronics Wiring Diagram
*5
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
