Window Guide, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

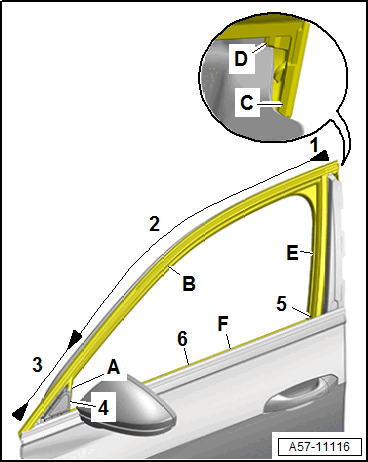

-- Install the window guide -B- on the door flange in the sequence -1 through 6-.

Courtesy of AUDI OF AMERICA, LLC

Step
1.	-- Position the upper edge of the window guide on the B-pillar door flange and push it forward in the direction of travel.
	The corners -C and D- of the window guide must be flush on the B-pillar door flange.
2.	-- Install the window guide on the door flange.
	Fold the window guide sealing lip over the inside of the door flange.
3.	-- Align the window guide on the A-pillar guide rail.
4.	-- Insert the window guide -A- in the guide rail.
5.	-- Mount the B-pillar trim (refer to B-PILLAR DOOR TRIM, REMOVING AND INSTALLING, FRONT ) and insert the window guide -E- in the guide rail.
6.	-- Slide the inner window shaft strip -F- on the door flange.
