Windshield Defogger Control Module -J505-, REMOVING AND INSTALLING: Removing
-- Remove the rear panel sill frame. Refer to appropriate Repair Information
.

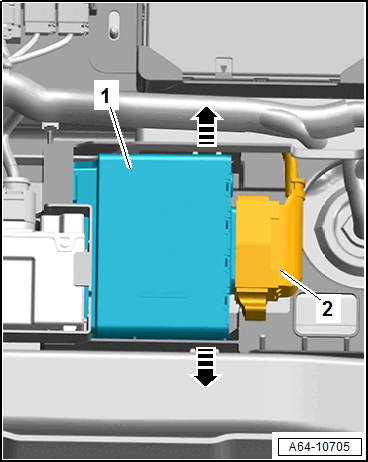

-- Release the retainers in direction of -arrows- and guide the control module -1- out of the mount.
Courtesy of AUDI OF AMERICA, LLC
|
-- Disconnect the connector -2-.
