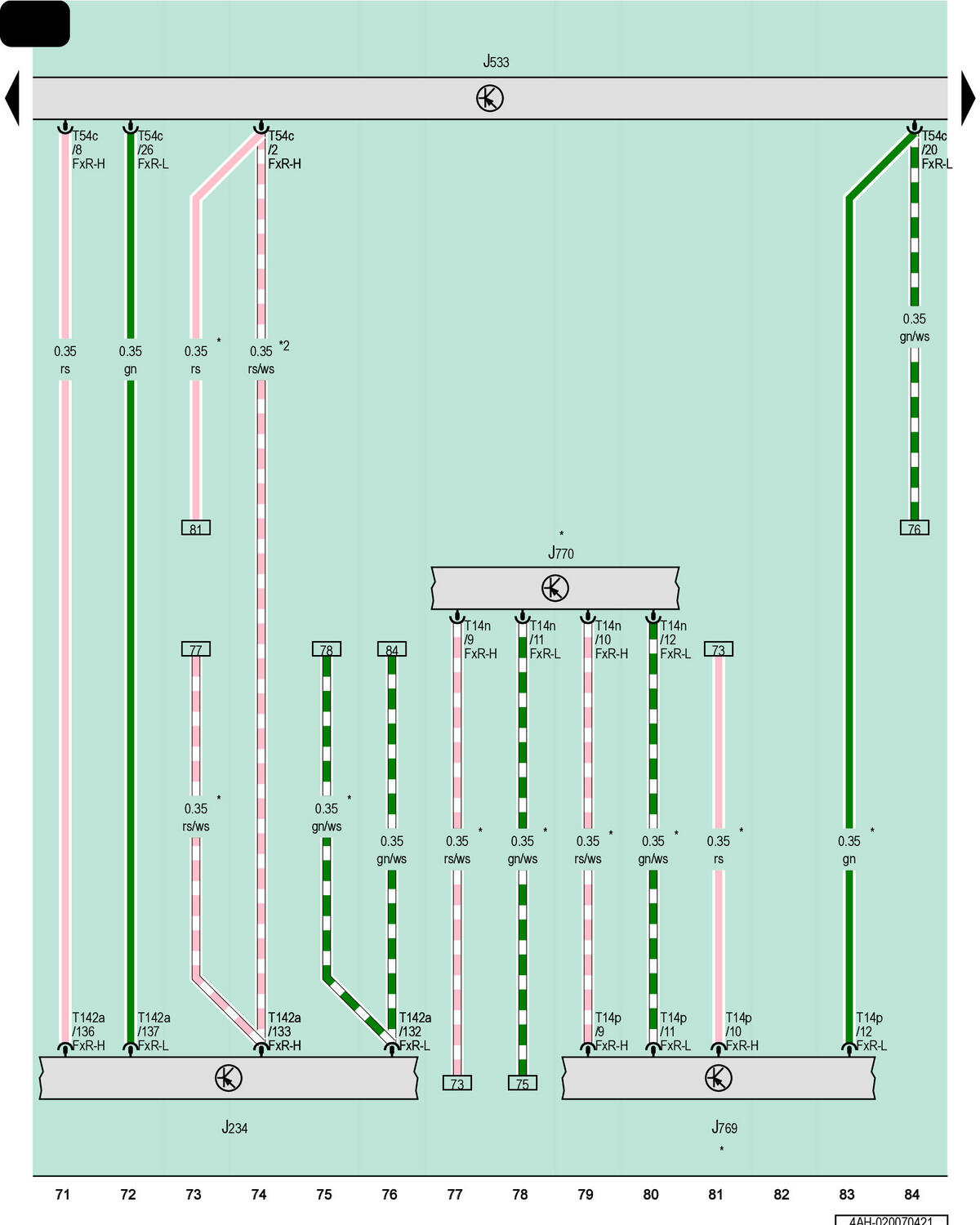

Airbag Control Module, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

T14n

14-Pin Connector, Black

T14p

14-Pin Connector, Black

T54c

54-Pin Connector, Black

T142a

142-Pin Connector, Yellow

For Vehicles with Lane Change Assistance

For Vehicles Without Lane Assistance
