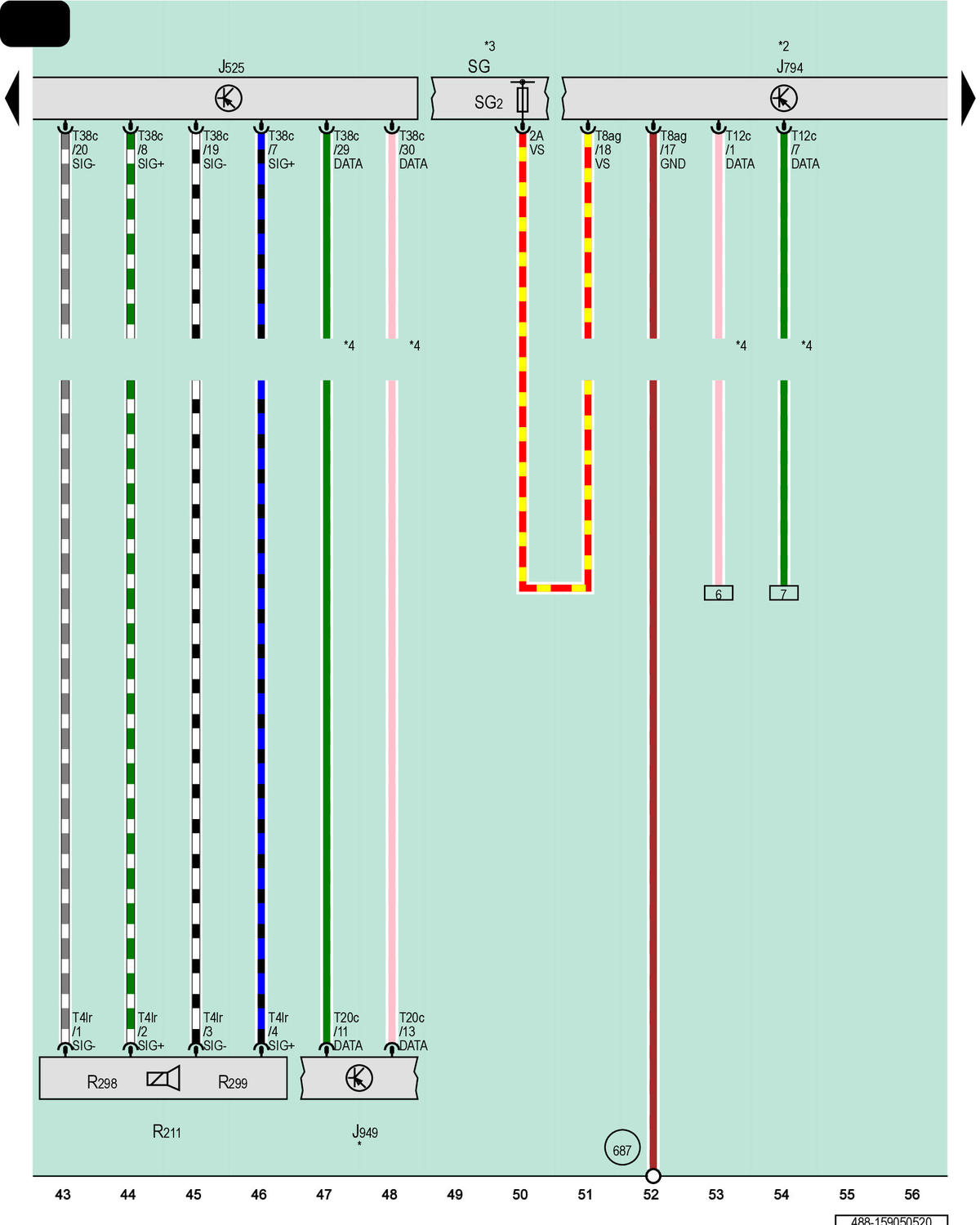

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Subwoofer

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

R211

Subwoofer

R298

Dual Subwoofer Speaker 1

R299

Dual Subwoofer Speaker 2

SG

Fuse Panel G

SG2

Fuse 2 on Fuse Panel G

T4lr

4-Pin Connector, Black

T8ag

8-Pin Connector, Black

T12c

12-Pin Connector, Green

T20c

20-Pin Connector, Naturally Cloudy

T38c

38-Pin Connector, Black

687

Ground Connection 1 on Center Tunnel

*

Refer to Applicable Communication Wiring Diagram

*2

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Fuse Positions

*4

Audio Bus Data Bus Wire
