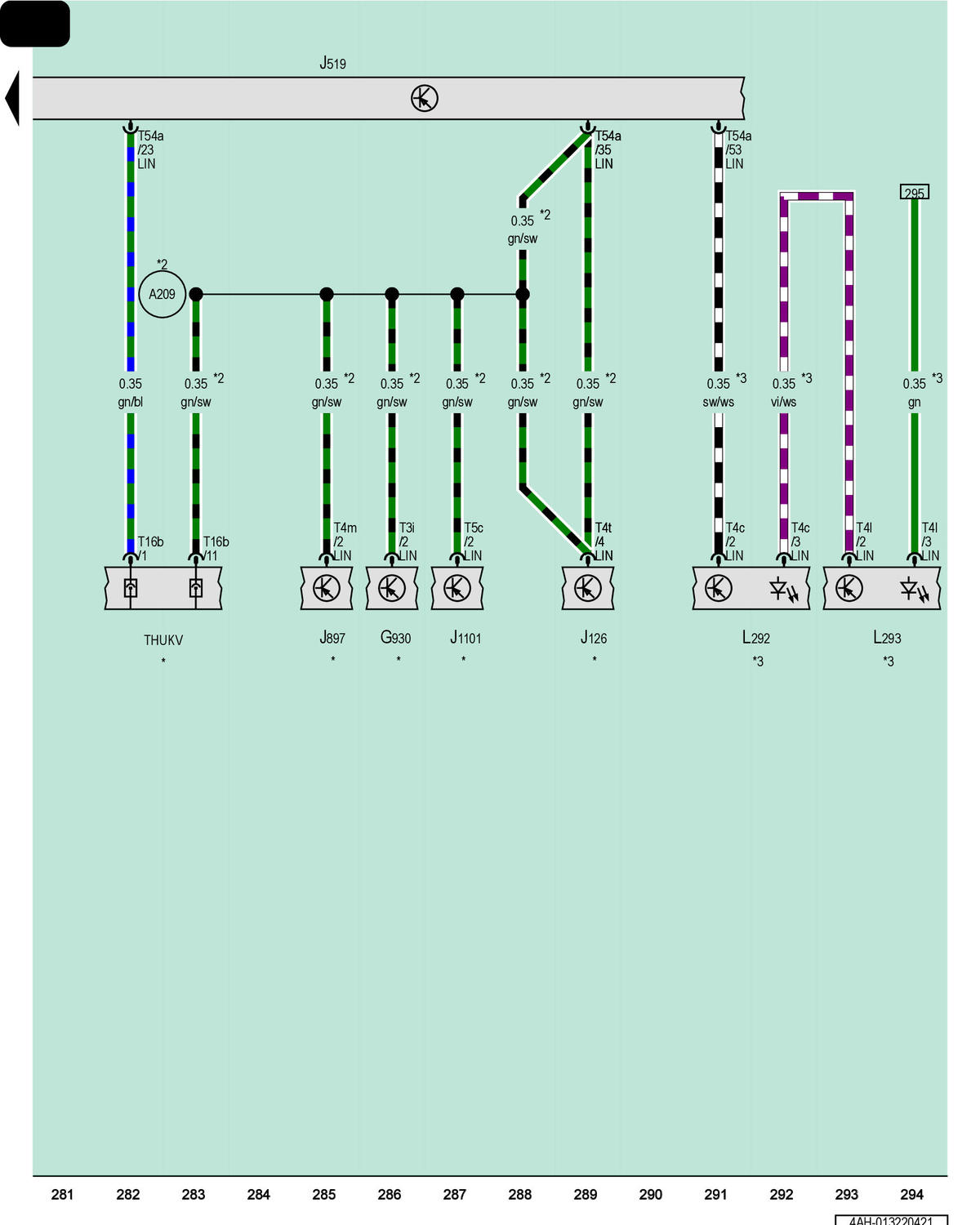

A/C System Particulate Matter Concentration Sensor, Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module, Instrument Panel Ambient Lighting Lamp 1, Instrument Panel Ambient Lighting Lamp 2
G930
A/C System Particulate Matter Concentration Sensor
J126
Fresh Air Blower Control Module
J519
Vehicle Electrical System Control Module
J897
Ionizer Control Module
J1101
Fragrance Diffuser System Control Module
L292
Instrument Panel Ambient Lighting Lamp 1
L293
Instrument Panel Ambient Lighting Lamp 2
T3i
3-Pin Connector, Blue
T4c
4-Pin Connector, Black
T4l
4-Pin Connector, Black
T4m
4-Pin Connector, Black
T4t
4-Pin Connector, Black
T5c
5-Pin Connector, Black
T16b
16-Pin Connector, Black
T54a
54-Pin Connector, Black
THUKV
Front Heating and Air Conditioning Coupling Point
A209
LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Depending on Equipment
*3
For Vehicles with Ambient Lighting
