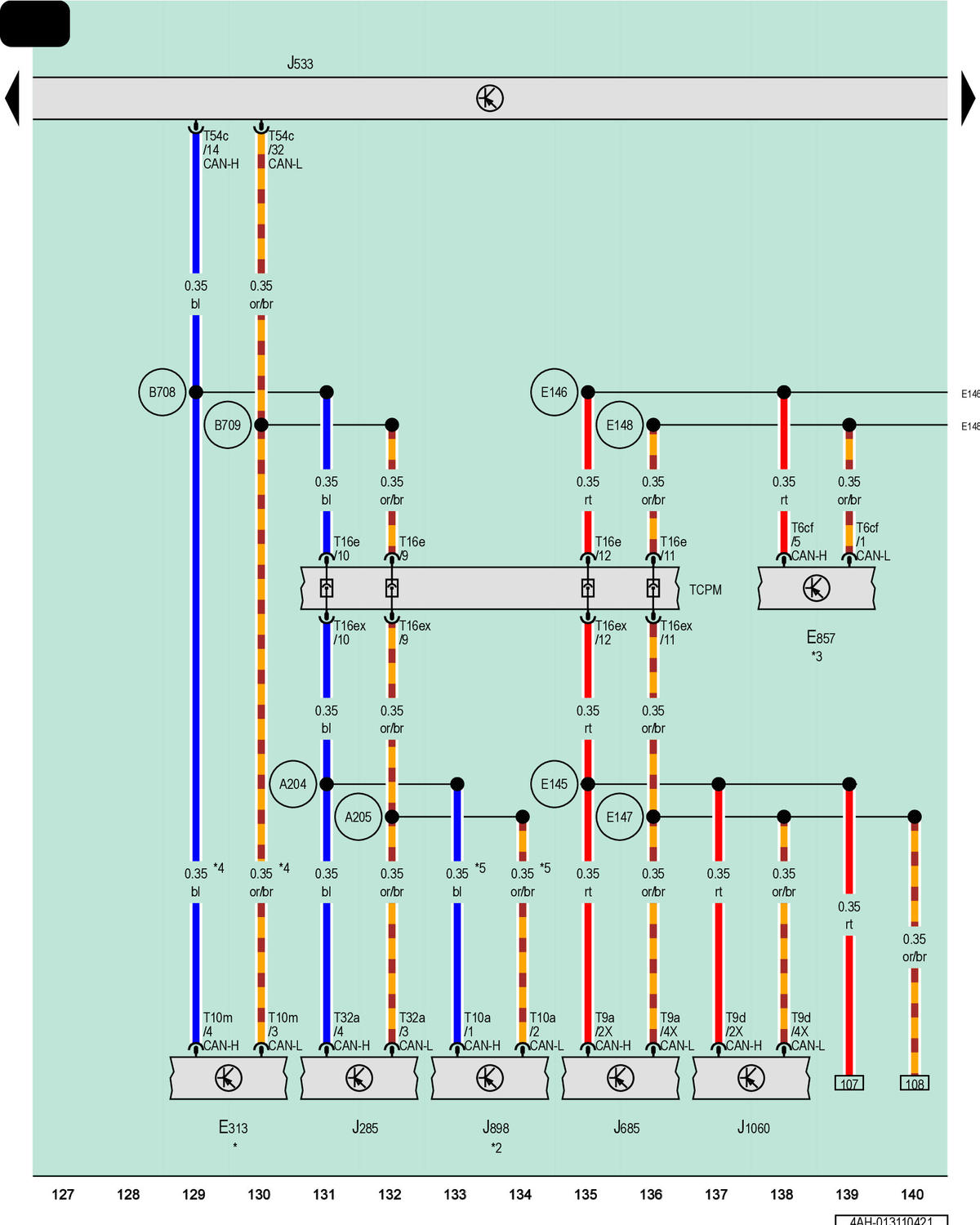

Auxiliary Display Control Head 1, Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Windshield Projection Head Up Display Control Module
E313
Selector Lever
E857
Auxiliary Display Control Head 1
J285
Instrument Cluster Control Module
J533
Data Bus on Board Diagnostic Interface
J685
Front Information Display Control Head
J898
Windshield Projection Head Up Display Control Module
J1060
Front Information Display Control Head 2
T6cf
6-Pin Connector, Black
T9a
9-Pin Connector, Black
T9d
9-Pin Connector, White
T10a
10-Pin Connector, Black
T10m
10-Pin Connector, Black
T16e
16-Pin Connector, Black
T16ex
16-Pin Connector, Black
T32a
32-Pin Connector, Gray
T54c
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
A204
Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205
Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B708
Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B709
Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
E145
Connection 1 (CAN Bus Information Electronics Control Module 1, High)
E146
Connection 2 (CAN Bus Information Electronics Control Module 1, High)
E147
Connection 1 (CAN Bus Information Electronics Control Module 1, Low)
E148
Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
*
Refer to Applicable Wiring Diagram for Automatic Transmission
*2
Refer to Applicable Windshield Projection Wiring Diagram
*3
Refer to Applicable Seat Adjustment Wiring Diagram
*4
For Vehicles with Automatic Transmission
*5
For Vehicles with Windshield Projection
