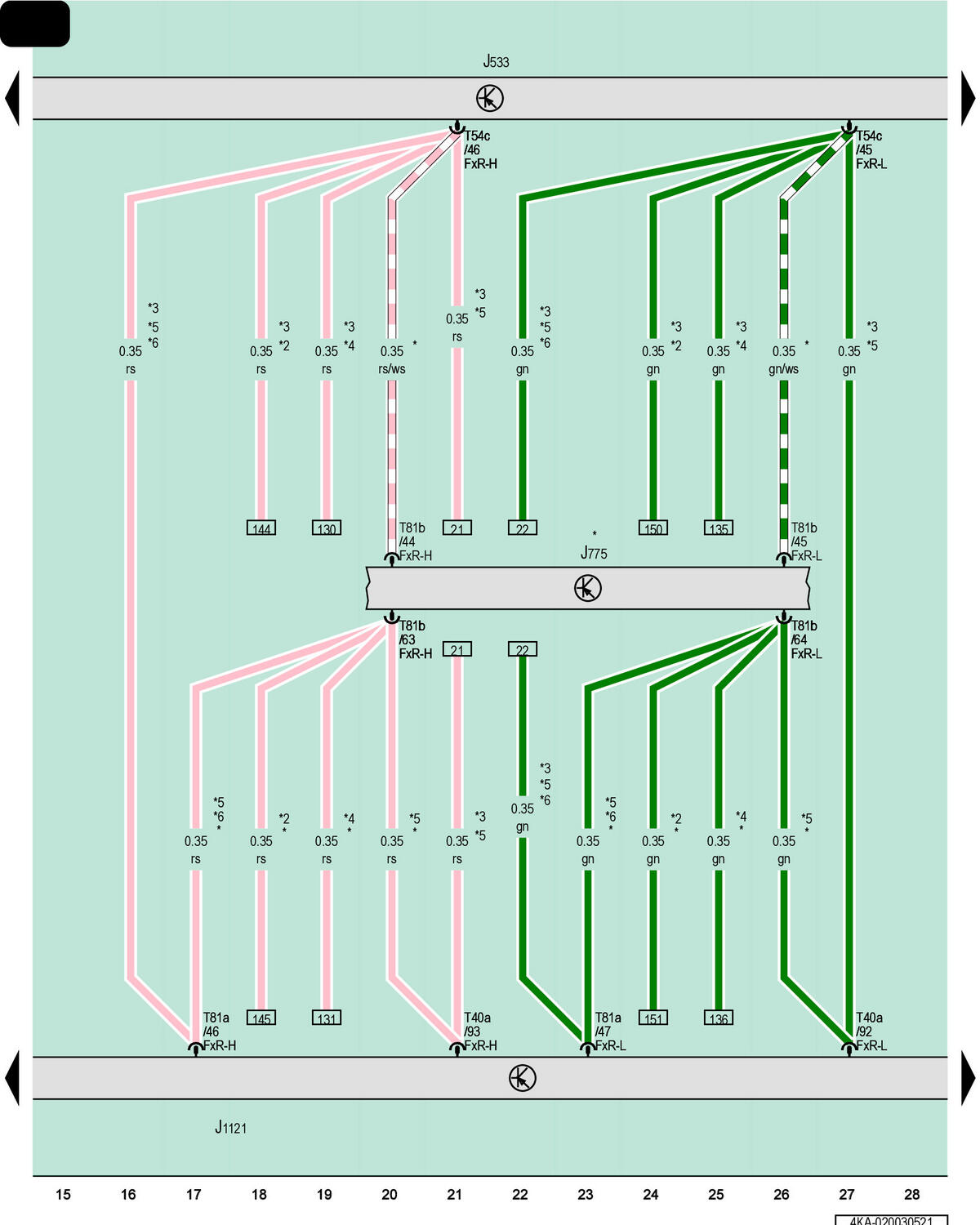

Data Bus On Board Diagnostic Interface, Drivetrain Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J775

Drivetrain Control Module

J1121

Driver Assistance Systems Control Module

T40a

40-Pin Connector, Black

T54c

54-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

*

For Vehicles with Level Control System

*2

For Vehicles with Electromechanical Power Steering

*3

For Vehicles Without Level Control System

*4

For Vehicles with Active Steering

*5

For Driver Assistance System

*6

Optional Equipment
