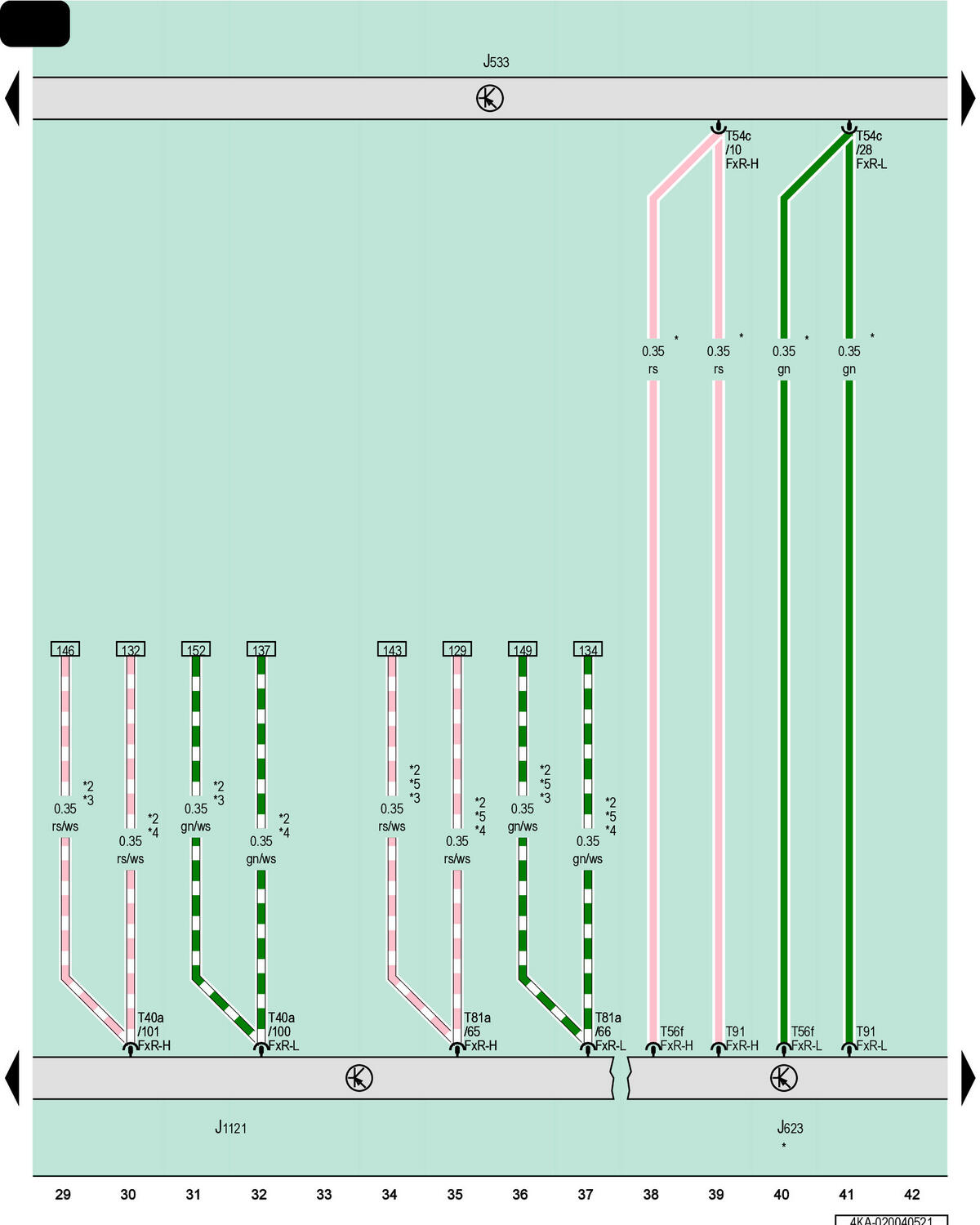

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

J1121

Driver Assistance Systems Control Module

T40a

40-Pin Connector, Black

T54c

54-Pin Connector, Black

T56f

56-Pin Connector, Black

T81a

81-Pin Connector, Black

T91

91-Pin Connector, Black

*

Refer to Applicable Engine Wiring Diagram

*2

For Driver Assistance System

*3

For Vehicles with Electromechanical Power Steering

*4

For Vehicles with Active Steering

*5

Optional Equipment
