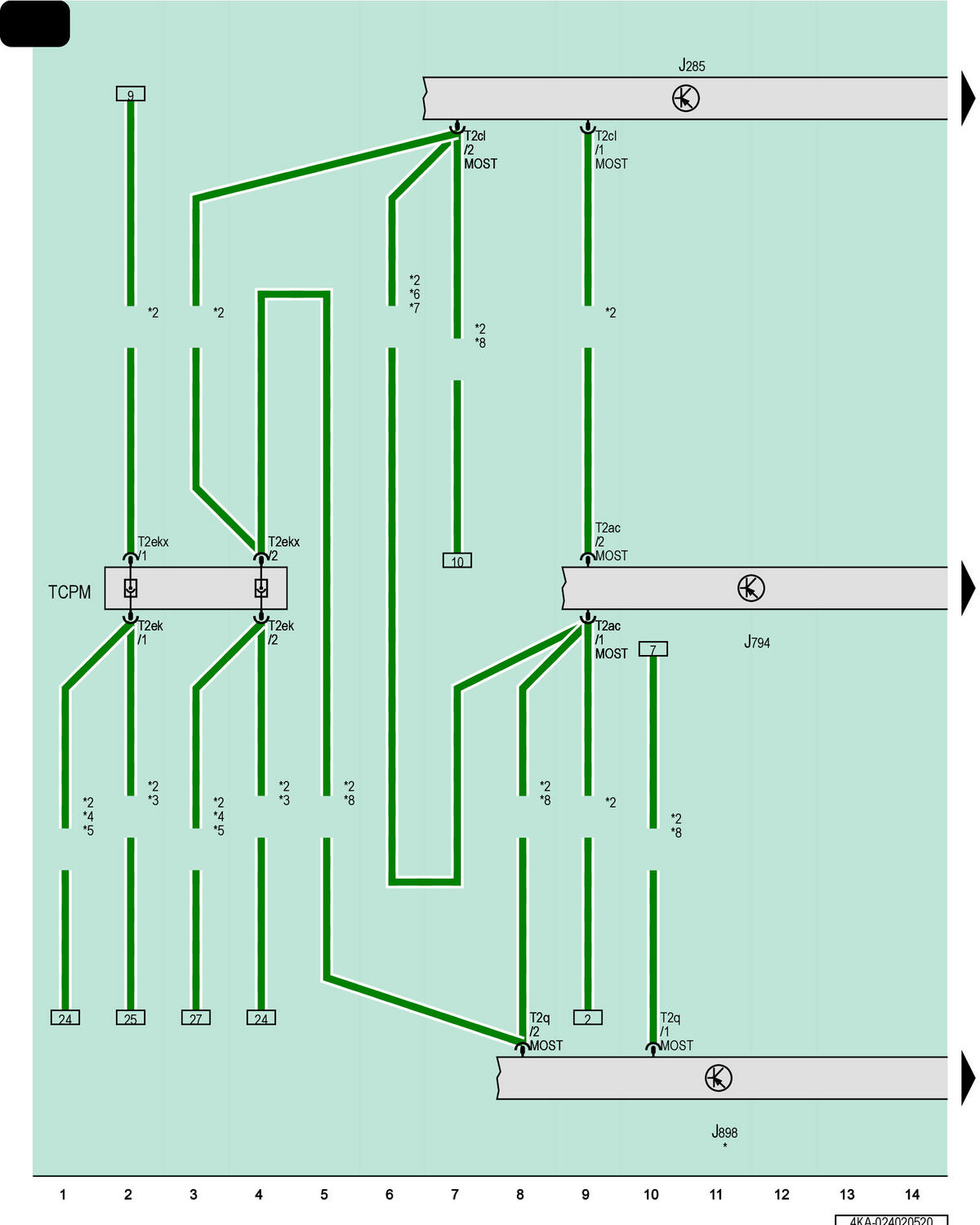

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI OF AMERICA, LLC

J285

Instrument Cluster Control Module

J794

Information Electronics Control Module 1

J898

Windshield Projection Head Up Display Control Module

T2ac

2-Pin Connector, Black

T2cl

2-Pin Connector, Black

T2ek

2-Pin Connector, Black

T2ekx

2-Pin Connector, Black

T2q

2-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

*

Refer to Applicable Windshield Projection Wiring Diagram

*2

Fiber Optic Cable

*3

For Vehicles with TV Tuner

*4

For Vehicles with Bang & Olufsen Sound System

*5

For Vehicles with Bose Sound System

*6

For Vehicles with Standard Sound System

*7

For Vehicles with MMI

*8

For Vehicles with Windshield Projection
