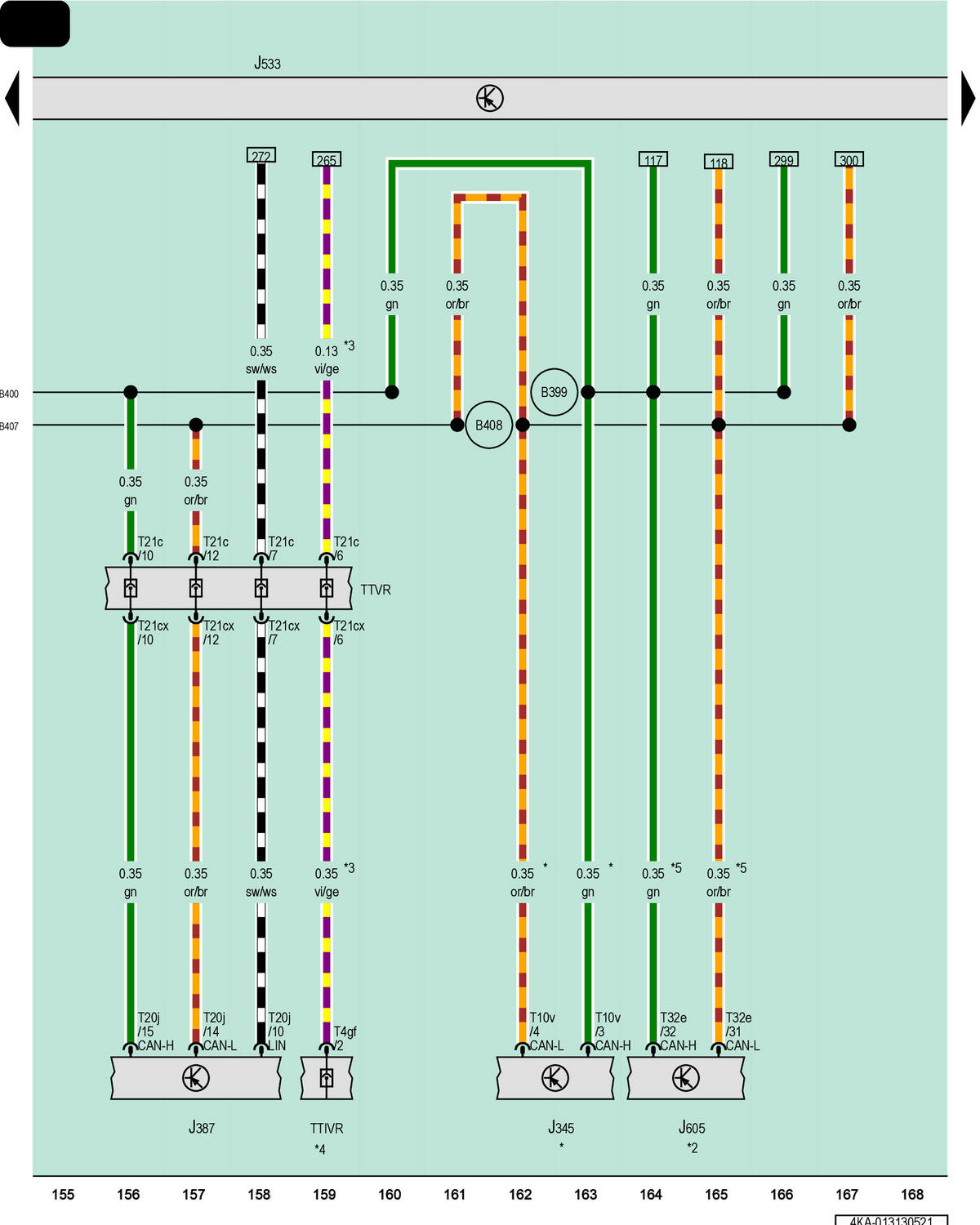

Towing Recognition Control Module, Front Passenger Door Control Module, Data Bus On Board Diagnostic Interface, Rear Lid Control Module

Courtesy of AUDI OF AMERICA, LLC

J345

Towing Recognition Control Module

J387

Front Passenger Door Control Module

J533

Data Bus on Board Diagnostic Interface

J605

Rear Lid Control Module

T4gf

4-Pin Connector, Black

T10v

10-Pin Connector, Black

T20j

20-Pin Connector, White

T21c

21-Pin Connector, Black

T21cx

21-Pin Connector, Black

T32e

32-Pin Connector, Naturally Cloudy

TTIVR

Coupling Point in Right Front Door

TTVR

Right Front Door Coupling Point

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B400

Comfort System CAN Bus High Connection 4 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

For Vehicles with Trailer Hitch

Refer to Applicable Power Rear Lid Wiring Diagram

For Vehicles with Ambient Lighting

Refer to Applicable Front Passenger Door Wiring Diagram

Optional Equipment
