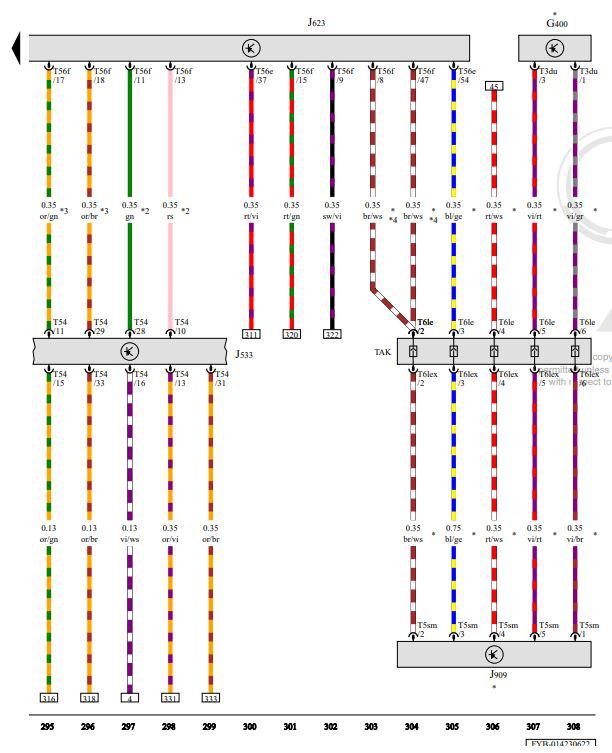

Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Module, Fuel Tank Pressure Sensor, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module
G400
Fuel Tank Pressure Sensor
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front
J909
Fuel Tank Leak Detection Control Module
T3du
3-Pin Connector, Black
T5sm
5-Pin Connector, Black
T6le
6-Pin Connector, Green
T6lex
6-Pin Connector, Green
T54
54-Pin Connector, Black
T56e
56-Pin Connector, Black
T56f
56-Pin Connector, Black
TAK
Fuel Tank Coupling Point
*
For Vehicles with US Equipment
*2
Data Bus Wire (Flexray Bus)
*3
Data Bus Wire (Can Bus)
*4
Depending on Equipment
