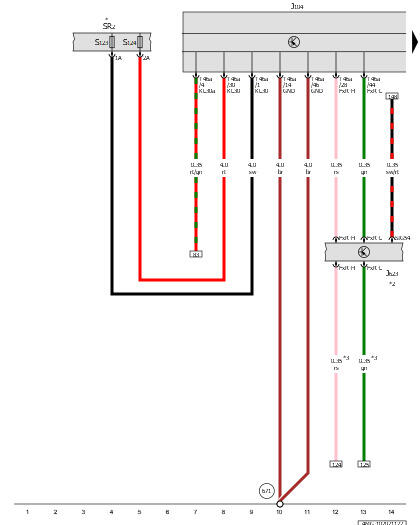

Abs Control Module, Engine/Motor Control Module, Relay And Fuse Panel 2, Abs Control Module Fuse 2

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J623

Engine/Motor Control Module

SR2

Relay and Fuse Panel 2

S123

ABS Control Module Fuse 1

S124

ABS Control Module Fuse 2

T46a

46-Pin Connector, Black

671

Ground Connection 1 on Left Front Longitudinal Member

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Refer to Applicable Engine Wiring Diagram

*3

For Vehicles with Hybrid Drive
