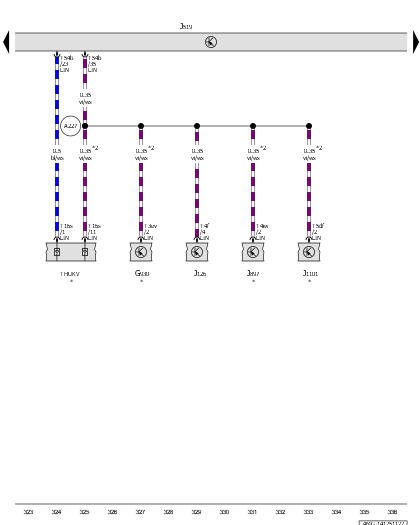

A/C System Particulate Matter Concentration Sensor, Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module, Front Heating And Air Conditioning Coupling Point

Courtesy of AUDI OF AMERICA, LLC

G930

A/C System Particulate Matter Concentration Sensor

J126

Fresh Air Blower Control Module

J519

Vehicle Electrical System Control Module

J897

Ionizer Control Module

J1101

Fragrance Diffuser System Control Module

T3ev

3-Pin Connector, Blue

T4f

4-Pin Connector, Black

T4iw

4-Pin Connector, Black

T5df

5-Pin Connector, Black

T16s

16-Pin Connector, Black

T54b

54-Pin Connector, Black

THUKV

Front Heating and Air Conditioning Coupling Point

A227

LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram

*2

Depending on Equipment
