Multifunction Transmission Range Switch, Adjusting: Notes

Special Tools And Workshop Equipment Required

Gauge - Multi Function Switch :T10173

Adjustment Requirements

The Selector Lever Cable Is Removed From The Selector Lever.
The Selector Shaft Is In "N".
The Bolts For The Multifunction Transmission Range Switch -F125- Are Loosened.
The Selector Lever Is Removed From The Selector Shaft.

Adjusting

-- Move The Selector Lever Into "N".

-- Insert The :T10173 On The Selector Shaft -2- And Rotate The Multifunction Transmission Range Switch - F125- -1- Until The Gauge Locks On The Multifunction Transmission Range Switch Connector Tab.

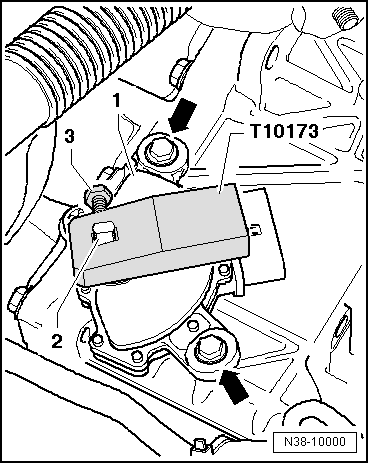

Fig 1: Adjustment Tool Attached Onto Shift Rod

Courtesy of AUDI OF AMERICA, LLC

Tip:

If The Connector Tab Cannot Lock Into The Groove On The Gauge, Then The Transmission Is No Longer In "N". If This Is The Case, Shift The Transmission Into "N" Using The Gauge.

-- Secure The Gauge To The Selector Shaft -2- With The Bolt -3-.

-- Tighten The Bolts -Arrows-.

-- Remove The Adjustment Gauge.

-- Further Installation Is Performed In Reverse Order Of Removal. Refer To . Attach The Selector Lever -3- To The Selector Shaft -4-.
