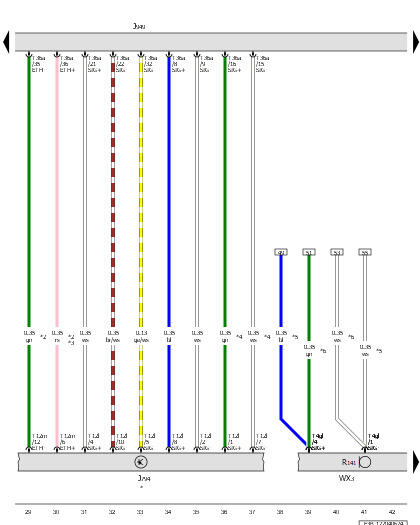

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

R141

Right Front Microphone

T4gl

4-Pin Connector, Blue

T12l

12-Pin Connector, Blue

T12m

12-Pin Connector, Green

T36a

36-Pin Connector, Black

WX3

Front Roof Module

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*2

Diameter Depends on Equipment

*3

Different Wire Color Possible

*4

For Vehicles with Emergency Call Module

*5

For LHD Vehicles

*6

For RHD Vehicles
