Electric Drive Power And Control Electronics -JX1- Component Location And Connector End View: Notes

Component Location

On underbody

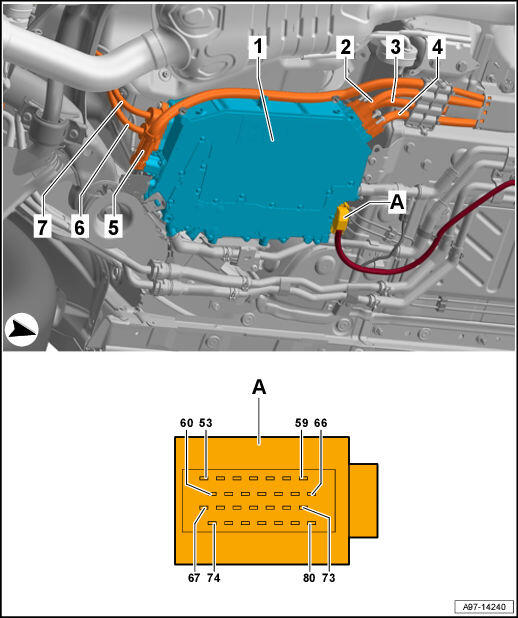

Fig 1: Electric Drive Power And Control Electronics -JX1- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Electric Drive Power and Control Electronics -JX1-
2. 2 -  Drive Motor High Voltage Cable 1 -P4-
3. 3 -  Drive Motor High Voltage Cable 2 -P5-
4. 4 -  Drive Motor High Voltage Cable 3 -P6-
5. 5 -  High Voltage Cable for Power and Control Electronics Plus -P9-, High Voltage Cable for Power and Control Electronics Negative -P10-
6. 6 -  Hybrid Battery High Voltage Cable, Negative Terminal -P2-
7. 7 -  Hybrid Battery High Voltage Cable, Positive Terminal -P1-
8. A -  28-Pin Connector -T28c-, black
