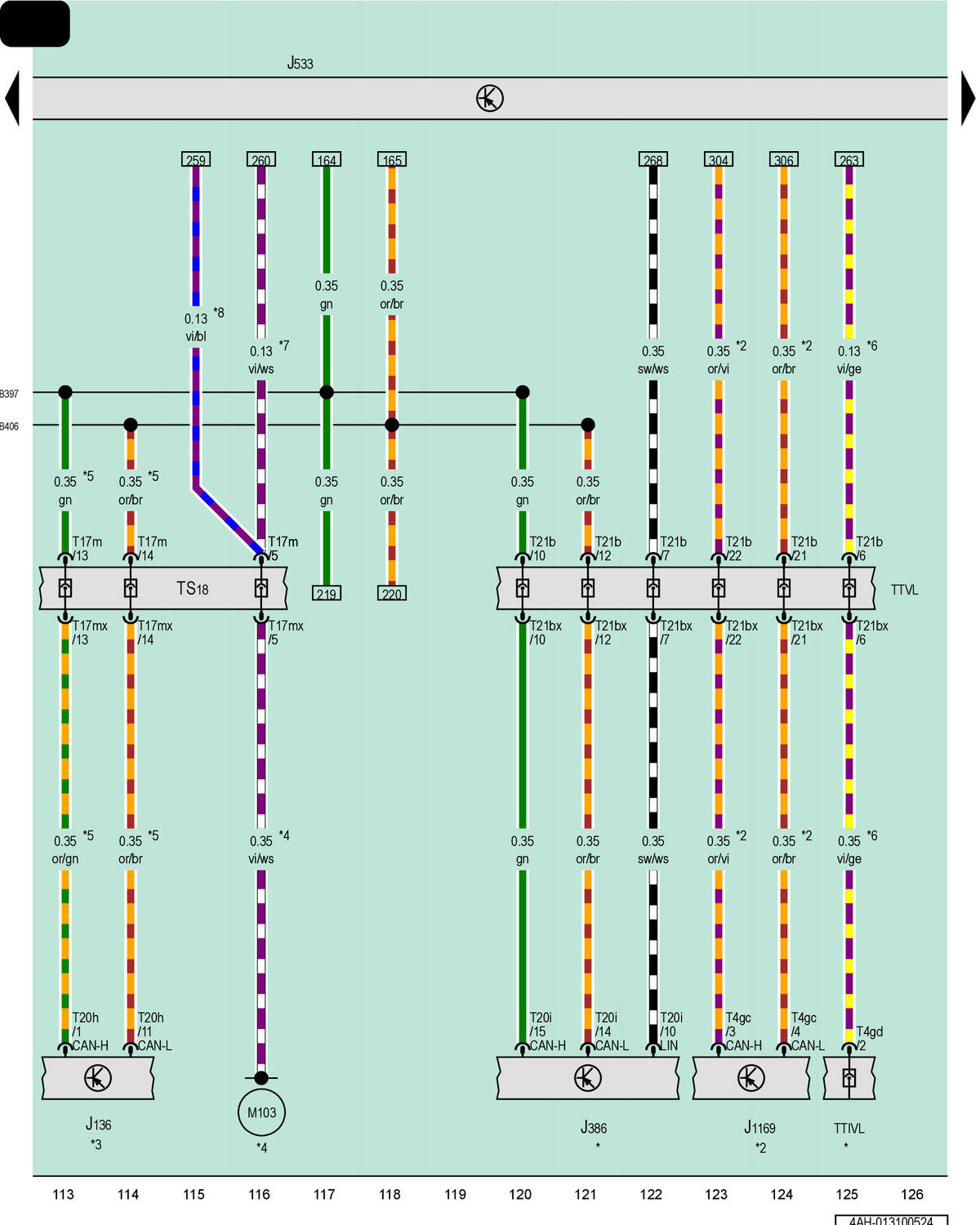

Memory Seat/Steering Column Adjustment Control Module, Driver Door Control Module, Data Bus On Board Diagnostic Interface, Near Field Communication Control Module

Courtesy of AUDI OF AMERICA, LLC

J136

Memory Seat/Steering Column Adjustment Control Module

J386

Driver Door Control Module

J533

Data Bus on Board Diagnostic Interface

J1169

Near Field Communication Control Module

T4gc

4-Pin Connector, White

T4gd

4-Pin Connector, Black

T17m

17-Pin Connector, Red

T17mx

17-Pin Connector, Red

T20h

20-Pin Connector, Black

T20i

20-Pin Connector, White

T21b

21-Pin Connector, Black

T21bx

21-Pin Connector, Black

TS18

Driver Seat Coupling Point

TTIVL

Coupling Point in Left Front Door

TTVL

Left Front Door Coupling Point

B397

Comfort System CAN Bus, High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus, Low Connection 1 (in Main Wiring Harness)

M103

LIN Bus Connection 1 (in Left Front Seat Wiring Harness)

*

Refer to Applicable Driver Door Wiring Diagram

*2

Optional Equipment

*3

Refer to Applicable Seat Adjustment Wiring Diagram

*4

For Vehicles with Seat Ventilation

*5

For Vehicles with Power Memory Seats

*6

For Vehicles with Ambient Lighting

*7

Omitted as a Running Change

*8

Running Change
