Rear Seat Area

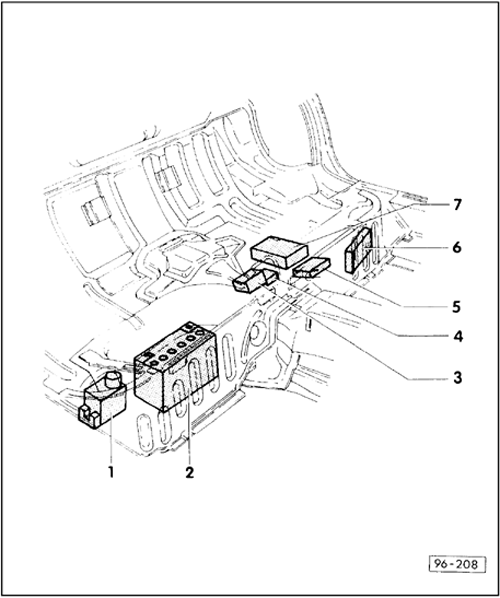

Fig 1: Identifying Modules In Rear Seat Area
GWW96-208Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Central locking/alarm system/interior lighting delay control module -V94-
  2. 2 -  Battery -A-
  3. 3 -  Mirror memory control module -J267-
  4. 4 -  ABS acceleration switch -F113-
  5. 5 -  Airbag energy reserve -J177-
  6. 6 -  ABS control module -J104-
  7. 7 -  Airbag voltage transformer -N96-
