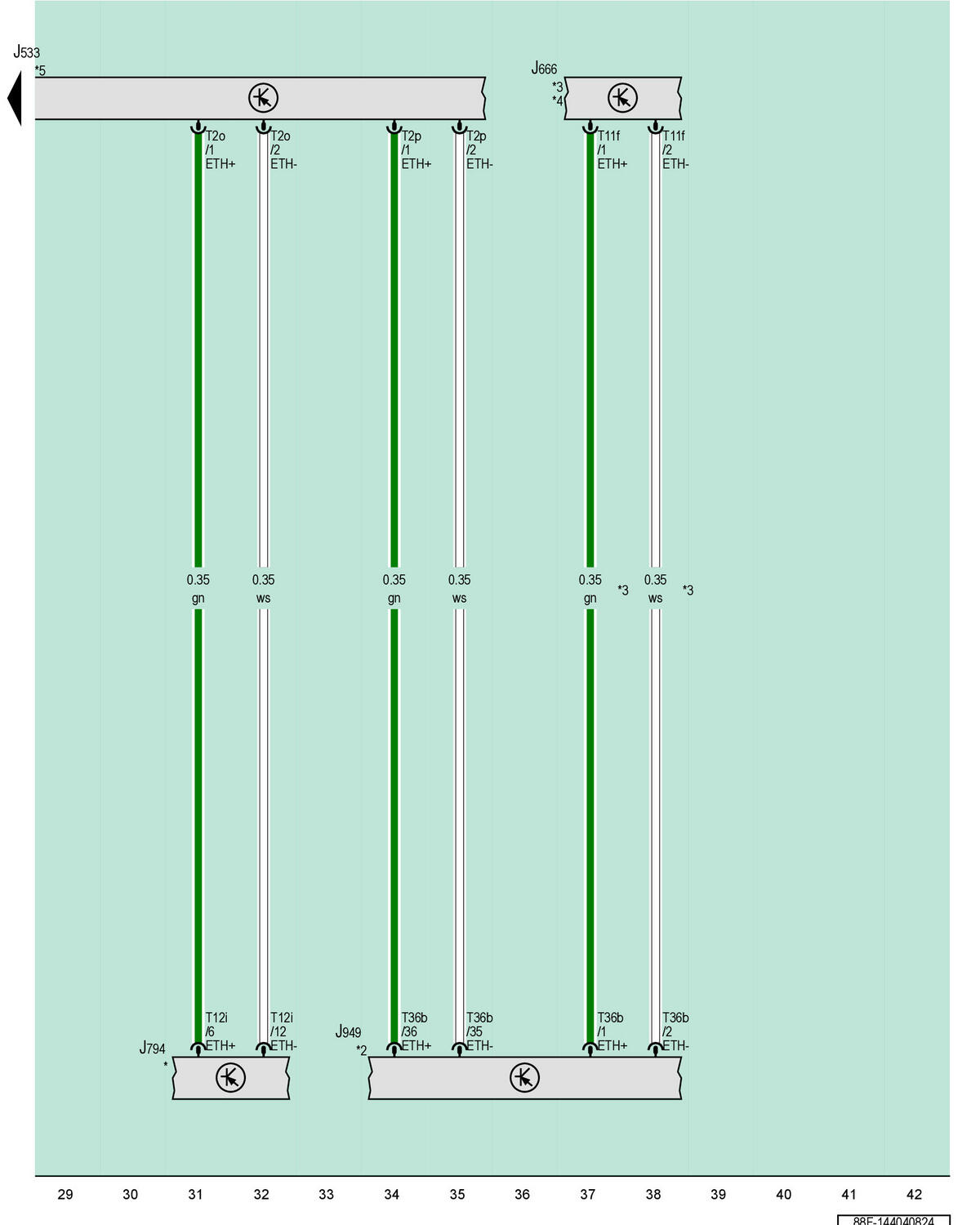

Data Bus On Board Diagnostic Interface, Internet Access Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J666

Internet Access Control Module

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

T2o

2-Pin Connector, White

T2p

2-Pin Connector, White

T11f

11-Pin Connector, Black

T12i

12-Pin Connector, Green

T36b

36-Pin Connector, Black

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram

*2

Refer to Applicable Communication Wiring Diagram

*3

For Vehicles with Radio-Controlled Parking

*4

Refer to Wiring Diagram for Parking Aid

*5

Refer to Applicable Wiring Diagram for Data Bus Networking
