Central Valve, Removing And Installing: Removing
WARNING: This page is about a different car, the 2025 Audi S5 Sportback, 2025 Audi RS 5 Sportback, and 2025 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
The central valves are attached to the impact member under the bumper cover in the rear.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
WARNING:
Risk of eye injury.
- Wear protective eyewear!
NOTE:
The DRC lines must be extracted before disconnecting them from the central valve. Refer to DYNAMIC RIDE CONTROL (DRC), DRAINING AND FILLING .
Perform this step on both wiring harnesses on the central valve.

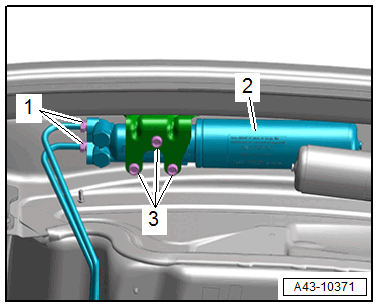

-- Remove the union bolts -1-.
-- Remove the bolts -3- and remove the central valve -2-.
