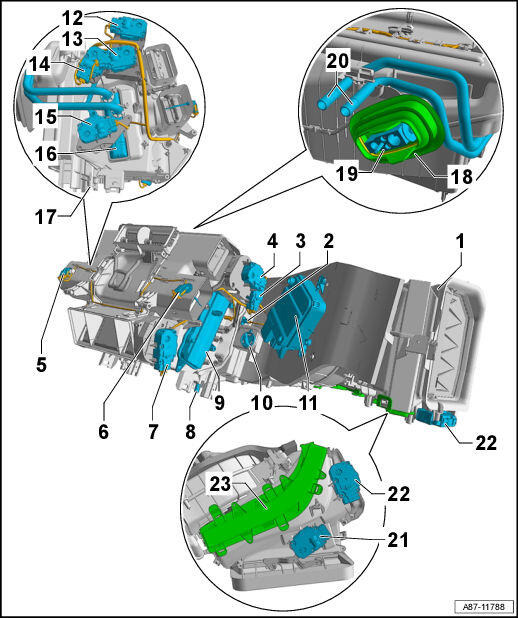

Plenum High A/C
Courtesy of AUDI OF AMERICA, LLC
- 2 -
Evaporator vent temperature sensor -G263-
- 3 -
Right temperature door motor -V159-
- 4 -
Right side vent motor -V300-
- 5 -
Left footwell vent temperature sensor -G261-
- 6 -
Right footwell vent temperature sensor -G262
- 7 -
Rear air distribution door motor -V427-
- 9 -
Auxiliary heater heating element -Z35-
- 11 -
Fresh air blower control module -J126-
- 12 -
Defroster door motor -V107-
- 13 -
Left side vent motor -V299-
- 14 -
Left temperature door motor -V158-
- 15 -
Rear temperature door motor -V137-
- 21 -
Fresh air door motor -V438-
- 22 -
Recirculation door motor -V113-
