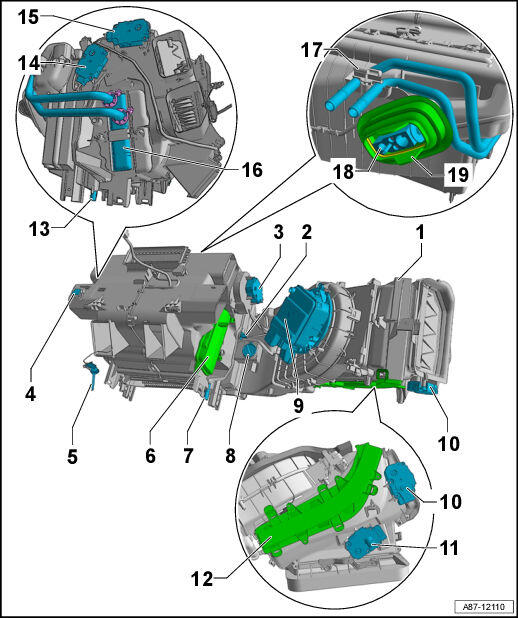

Plenum Low A/C
- 2 - Evaporator vent temperature sensor -G263-
- 3 - Air distribution door motor -V428-
- 4 - Left footwell vent temperature sensor -G261-
- 5 - Left front upper body vent temperature sensor -G385
- 6 - Auxiliary heater heating element -Z35-
- 9 - Fresh air blower control module -J126-
- 10 - Recirculation door motor -V113-
- 11 - Fresh air door motor -V438-
- 14 - Temperature regulator door motor -V68-
- 15 - Defroster door motor -V107-
