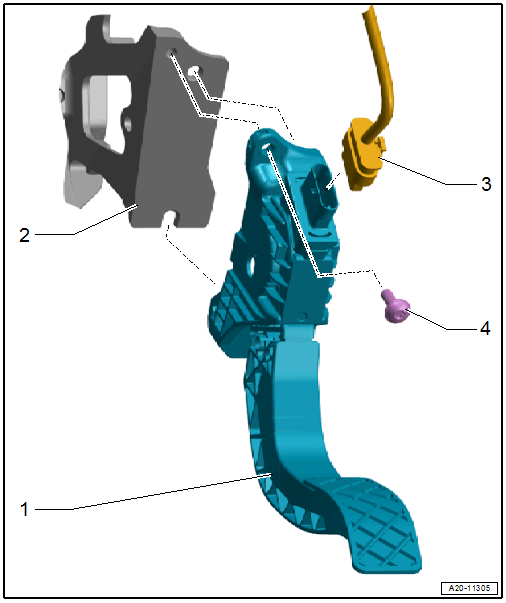

Overview - Accelerator Pedal Module
Courtesy of AUDI OF AMERICA, LLC
- Accelerator Pedal Module -GX2-
- with:
- Accelerator Pedal Position Sensor -G79-
- Accelerator Pedal Position Sensor 2 -G185-
- Equipped on some models: Active Accelerator Pedal Motor -V592-
- Check using the Vehicle Diagnostic Tester.
- Removing and Installing. Refer to Accelerator Pedal Module -GX2-, REMOVING AND INSTALLING .
- Depending on the engine/transmission combination, an adaptation must be performed after replacing.
- If a corresponding menu item is in the engine electronics tree structure under "functions", perform the adaptation using the Vehicle Diagnostic Tester.
- Pedal Bracket
- Connector
- Make sure it is attached securely
- Bolt
