Rivets And Tools Overview: Notes

Pop Rivet Pliers :VAG1753B

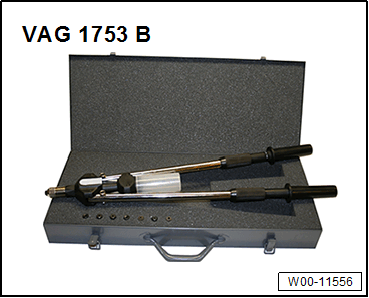

Fig 1: Pop Rivet Pliers

GWWW00-11556

Courtesy of AUDI OF AMERICA, LLC

Pop Rivet Pliers :VAG1765C

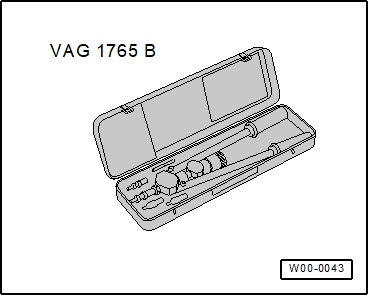

Fig 2: Identifying Pop Rivet Tongs V.A.G 1765 B

GWWW00-0043

Courtesy of AUDI OF AMERICA, LLC

Pop Rivet Nut Pliers :VAS5072A

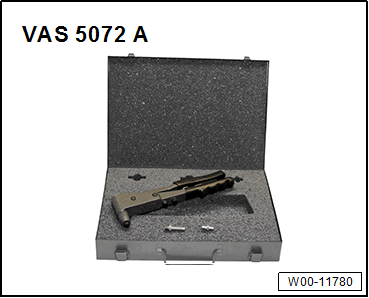

Fig 3: Pop Rivet Nut Pliers (VAS5072A)

GWWW00-11780

Courtesy of AUDI OF AMERICA, LLC

Pneumatic Pop Riveter :VAG2003A

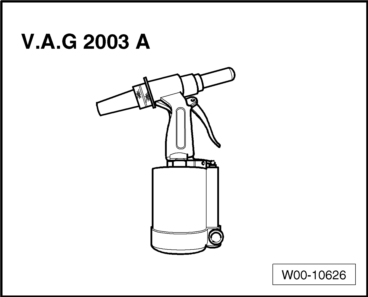

Fig 4: Pneumatic Pop Riveter

GWWW00-10626

Courtesy of AUDI OF AMERICA, LLC

Pneumatic Rivet Gun :VAS6759

Rechargeable Riveter :VAS5279A

Fig 5: Aluminum Shielded Arc Welder - (VAS6388)

GWWW00-10641

Courtesy of AUDI OF AMERICA, LLC

Rechargeable Riveter :VAS843 001

Pneumatic-Hydraulic Riveter Set :VAS6790

Compact Riveting Device :VAS6792

Compact Riveting Device - Extension :VAS6792/2

FD Bolt Socket :VAS852007A

Miracle Alurepair Plus-System :VAS852 001

Rivet	Part number size	VAG1765	VAS5279	VAS5072	VAG1753 B	VAG2003 A	VAS6790	VAS6792/2	VAS843 001	VAS6759	VAS852 007	VAS852 001
Punch Rivet	4D0 803 217 N 3.35 x 5 mm		x				x		x
Punch Rivet	4D0 803 217 Q 3.35 x 4 mm		x				x		x
Punch Rivet	4D0 803 217 L 5.3 x 5 mm		x				x		x
Punch Rivet	4D0 803 217 M 5.3 x 6.5 mm		x				x		x
Punch Rivet	N 909 261 02 5.3 x 6 mm		x				x		x
Punch Rivet	N 911 365 01 5.3 x 7.5 mm		x				x		x
Punch Rivet	N 911 348 01 5 x 4.2 mm		x				x		x
Aluminum solid rivet	N 103 239 01 4 x 8 mm		x				x		x
Aluminum solid rivet	N 103 240 01 4 x 12 mm		x				x		x
Aluminum solid rivet	N 107 440 01 6 x 10 mm		x				x		x
Aluminum solid rivet	N 107 441 01 6 x 12 mm		x
Aluminum pop rivet with a countersunk head	4E0 809 864 A						x	x	x	x
Aluminum pop rivet with a semi-round head	8Z0 809 864						x	x	x	x
Flow Drill Bolts	WHT.003.873 M5 x 25										x
Flow Drill Bolts	WHT.006.547 M5 x 20										x
Flow Drill Bolts	WHT.007.052 M5 x 18										x
Threaded rivet	N 907 163 01 14 mm				x	x	x	x	x	x
Threaded rivet	N 907 162 01 10 mm				x	x	x	x	x	x
Threaded rivet	N 907 161 01 22 mm				x	x	x	x	x	x
Threaded rivet	N 907 160 01 6 mm				x	x	x	x	x	x
Pop Rivet	WHT 005 413 A 6.5 mm rivet material strength: 5-9 mm				x	x	x	x	x	x
Pop Rivet	WHT 005.697 6.5 mm rivet material strength: 3 - 4.8 mm				x	x	x	x	x	x
Pop Rivet	WHT 911.527.01 6.5 mm rivet material strength: 4.5 - 7.0 mm				x	x	x	x	x	x
Pop Rivet	N 909 236 01 4.8 mm rivet material strength: 2.4 - 4.8 mm				x	x	x	x	x	x
Pop Rivet	N.906.924.02 4.8 mm rivet material strength: 1.5 - 3.5 mm				x	x	x	x	x	x
Pop Rivet	4S0 843 658				x	x	x	x	x	x
Pop rivet screw	WHT 005 180	VAG1765 C/2
Pop rivet screw	N.910.011.01	VAG1765 C/4
Pop Rivet Nut	N.910.377.01 M10	VAG1765
Pop Rivet Nut	N.908.568.02 M8	VAG1765
Weld Studs	VAS852 001/1 5 mm							x				x
Weld Studs	VAS852 001/2 4 mm							x				x
