00 General, Technical Data: Tools: Notes

Special tools and workshop equipment required

Resistance Spot Welder :VAS6239 A
Resistance Spot Welder :VAS6525
Resistance Spot Welder :VAS6530A
Resistance Spot Welder :VAS6535
Resistance Spot Welder :VAS6545A
Gas-Shielded Welder :VAS6044 or :VAS6045
Welding Unit :VAS2001C
Welding Emission Exhaust System :VAS892 003
Fume Extraction Swing Arm :VAS6571/1
FD Bolt Socket :VAS852007A
Flow Drill Socket Repair Set :VAS6631
Measuring and Alignment System :VAS6526 Basic
Measuring and Alignment System - Professional :VAS6527
Measuring and Alignment System - Professional Plus :VAS6528
Pneumatic Brush Grinder Set :VAS6446A
Drill - 1100 Watt :VAS6267A
Flat Blade Scraper :VAS5448
Pneumatic-Hydraulic Riveter Set :VAS6790
One-Handed Angle Grinder :VAS5167B

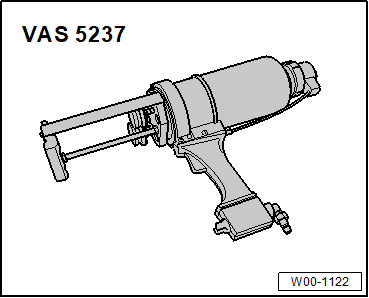

Double Cartridge Adhesive Gun :VAS5237

Fig 1: Double Cartridge Adhesive Gun (VAS5237)
Courtesy of AUDI OF AMERICA, LLC

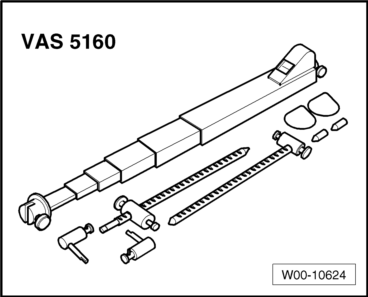

Telescoping Gauge - 41.5-92.5cm :VAS5159 or Telescoping Gauge - 92-260cm :VAS5160

Fig 2: Alignment Bracket Set -- VAS5160
Courtesy of AUDI OF AMERICA, LLC

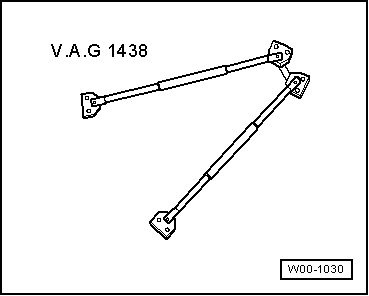

Mechanical Door Brace :VAG1438

Fig 3: Door Brace (V.A.G 1438)
Courtesy of AUDI OF AMERICA, LLC

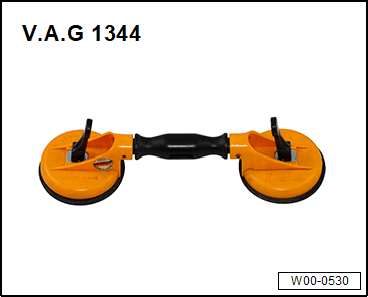

Double Suction Lifter :VAG1344 or Installation Magnets :VAS6739

Fig 4: Double Suction Lifter
Courtesy of AUDI OF AMERICA, LLC

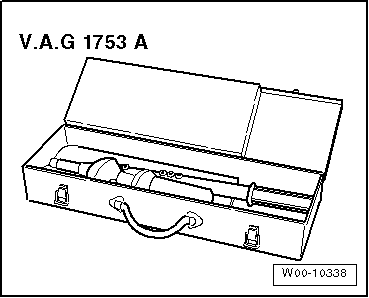

Pop Rivet Pliers :VAG 1753B

Fig 5: Identifying Special Pop Rivet Pliers V.A.G 1753A
Courtesy of AUDI OF AMERICA, LLC
Gauge - Gap Adjustment :3371

Fig 6: 3371 Special Tool
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap :T10038

Fig 7: Identifying Special Tools -- Tensioning Belt T10038
Courtesy of AUDI OF AMERICA, LLC

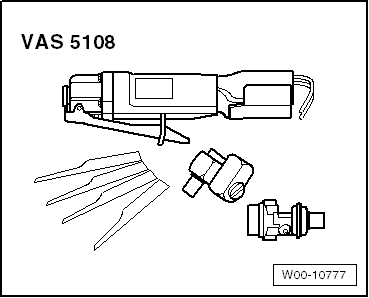

Pneumatic Jig Saw :VAS5108 or Body Saw :VAS6598 or Pneumatic Body Saw :VAS6780

Fig 8: Aluminum Shielded Arc Welder - (VAS6388)
Courtesy of AUDI OF AMERICA, LLC

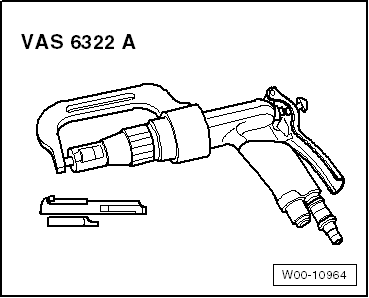

Spot-Weld Breaker :VAS6322 A or

Fig 9: Spot Weld Breaker (VAS6322 A)
Courtesy of AUDI OF AMERICA, LLC

Rechargeable Riveter :VAS843 001

Fig 10: Aluminum Shielded Arc Welder - (VAS6388)

Courtesy of AUDI OF AMERICA, LLC
