Control unit for electric compressor -J1123- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In front left in engine compartment.

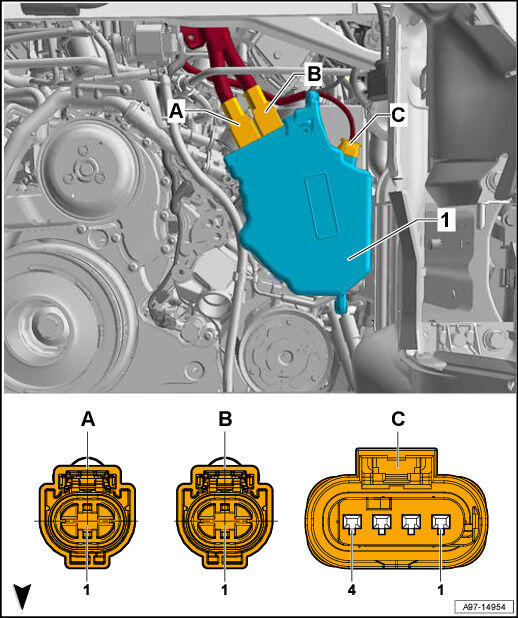

Fig 1: Control Unit For Electric Compressor -J1123- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Control unit for electric compressor -J1123-
• A -  1-Pin Connector -T1gd-, black
• B -  1-Pin Connector -T1ge-, black
• C -  4-Pin Connector -T4iv-, black
