Amplifier for Telephone -R86- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

In right luggage compartment, behind side panel trim.

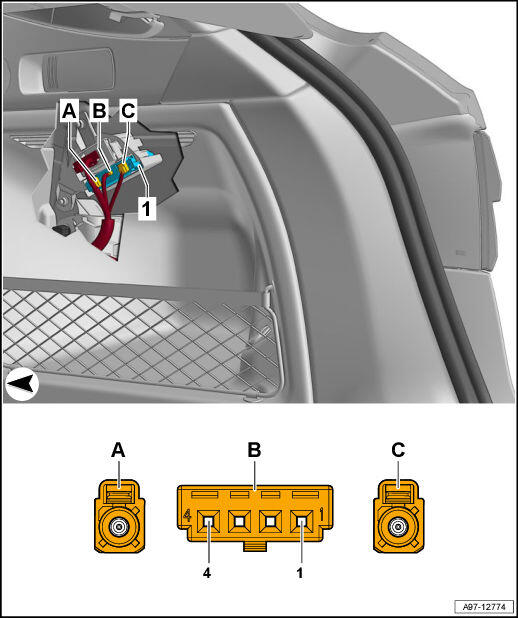

Fig 1: Amplifier For Telephone -R86- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Amplifier for Telephone -R86-
• A -  2-Pin Connector -T2hw-, purple, yellow, naturally cloudy
  • Through June 2019
• A -  2-Pin Connector -T2nkb-, purple
  • From July 2019
  • only with (GB1)
• A -  2-Pin Connector -T2nkc-, naturally cloudy
  • From July 2019
  • only with (GB2)
• A -  2-Pin Connector -T2nkd-, yellow
  • From July 2019
  • only with (GB3)
• B -  4-Pin Connector -T4br-, black
• C -  2-Pin Connector -T2hv-, black
